Complete PDF version of the Service Manual for the Aprilia RS4 125. A MUST for every RS4 125 owner.
Download: Immediately after payment!
OEM Original factory workshop manual.
Models covered by this manual: 2011 to 2016
Number of pages: 298 pages

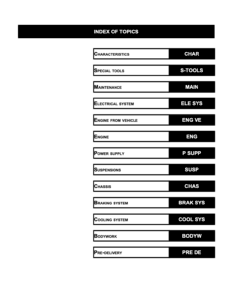

Table of contents:
This PDF repair manual can be downloaded right after the payment process in complete, on the device of your choice.
We do not offer printed manuals, for the following reasons:
- it is more eco-friendly to use a digital version
- your manual never gets dirty or greasy
- you can always choose to print the specific page(s) you need to work on your bike
- you receive your manual immediately after payment
- it is searchable
Aprilia RS4 125
The Aprilia RS4 is a motorcycle sports motorcycle Italian Aprilia since 2011, in 2017 the RS4 125 model is presented with the name of the previous model (RS 125).
With the models of the “RS4” series, Aprilia follows the trend of street bikes derived from the older sisters participating in competitions, in this case the Aprilia RSV4 .
The “RS4” designation will be replaced by “RS” in post 2017 models.
The series was designed to complement and partially replace the “RS” production range; presented for the first time during the EICMA , it went into production in early 2011.
The fairing, as in the sister RSV4, highlights the frame and engine, at the front there is a triple headlight, while the rear light is led.
The frame is the same used by the RS 50 since 1999, but with a different swingarm, the suspension consists of a fork 41 mm upside-down red and black anodized.
The braking system is equipped with disc stainless steel with four-piston radial caliper with metal braided brake hose, supported at the rear by a 220 mm disc with single-piston floating caliper with braided brake hose. metallic.
There displacements available: the first with a single-cylinder, two-stroke 50 cm³ engine (D50B1) produced by Derbi and equipped with a mixer, the second with a single-cylinder, four-stroke 125 cm³ (Derbi / Piaggio) liquid-cooled engine.
In 2017 the bike is equipped with ABS on the front, this brings the weight to an increase of 4 kg.
Source: Wikipedia
