KTM 450 / 500 EXC, XC-W & Six Days Service Manual (2014)

KTM reshaped its large-capacity four-stroke enduro range for the 2012 model year, introducing the 500 EXC as the successor to the 530 EXC and heavily revising the chassis and engine platform used across its open-class enduro machines. Contemporary testing described the 2012 500 EXC as a complete redesign, with lighter die-cast engine cases, a new crankshaft and piston, revised SOHC cylinder head, updated EFI, a stronger chrome-molybdenum frame, a lighter aluminium swingarm and reworked WP PDS suspension. Cycle World’s 2012 first ride documents that generational change and the move from the former 530 designation to the new 500.

By 2014, KTM had developed that platform into a closely related family spanning road-legal EXC machines and the more competition-focused XC-W line. The 450 EXC and 500 EXC shared the same 95 mm bore, OHC four-valve cylinder-head architecture, fuel injection, hydraulic wet clutch and six-speed transmission, but differed in stroke and displacement: 449.3 cm³ with a 63.4 mm stroke for the 450 and 510.4 cm³ with a 72 mm stroke for the 500. The chromoly central-tube frame, WP PDS rear suspension, 260 mm front brake and 220 mm rear brake were common to the family, creating the familiar large-capacity four-stroke enduro platform that defined KTM’s open-class machines of this period.

The North American 450 XC-W and 500 XC-W used the same basic engine and chassis architecture but were configured as off-road enduro motorcycles rather than fully homologated road models. Cycle World’s 2014 model overview described the 500 XC-W as the true off-road counterpart to the 500 EXC and the 450 XC-W as the same platform with the smaller-displacement engine. KTM’s own current model application database still lists separate 2014 entries for both 450 XC-W US and 500 XC-W US, confirming the distinct model identities documented by the factory manual.

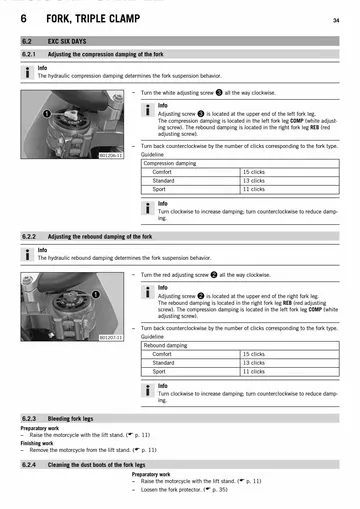

The 450 EXC Six Days and 500 EXC Six Days added the traditional International Six Days Enduro-inspired specification to the EXC platform. The 2014 factory manual separates these bikes from the standard EXC/XC-W suspension procedures because the Six Days models use a WP 4860 4CS fork, while the standard EXC and XC-W machines use the WP 4860 MXMA PA fork. KTM’s parts and model records independently list 2014 Six Days versions of both the 450 EXC and 500 EXC. These editions were therefore more than graphics packages: the suspension hardware and selected chassis equipment required their own service procedures within the same repair manual.

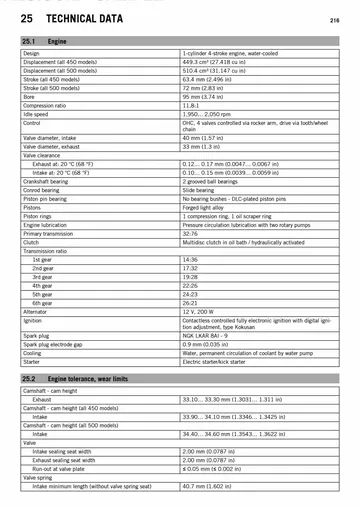

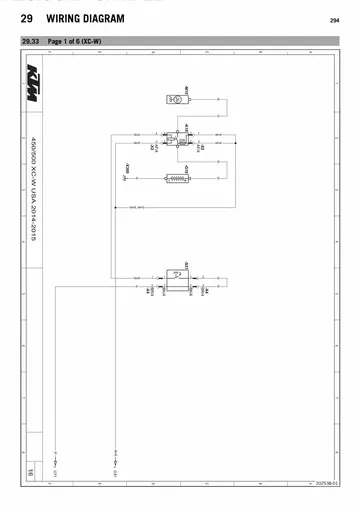

The 2014 generation sat in the middle of the platform’s 2012-2016 run, before KTM’s later enduro redesigns and nomenclature changes introduced the EXC-F naming now used on newer four-stroke EXC models. This listing is specifically for the 2014 factory Repair Manual. The PDF contains dedicated EXC EU/AUS/USA, EXC Six Days and XC-W procedures and wiring diagrams, and its technical data distinguishes all 450 and 500 variants. It does not state compatibility across 2012-2016, so the catalog year is intentionally limited to 2014. Related factory publications are grouped in the KTM service manual catalog.
