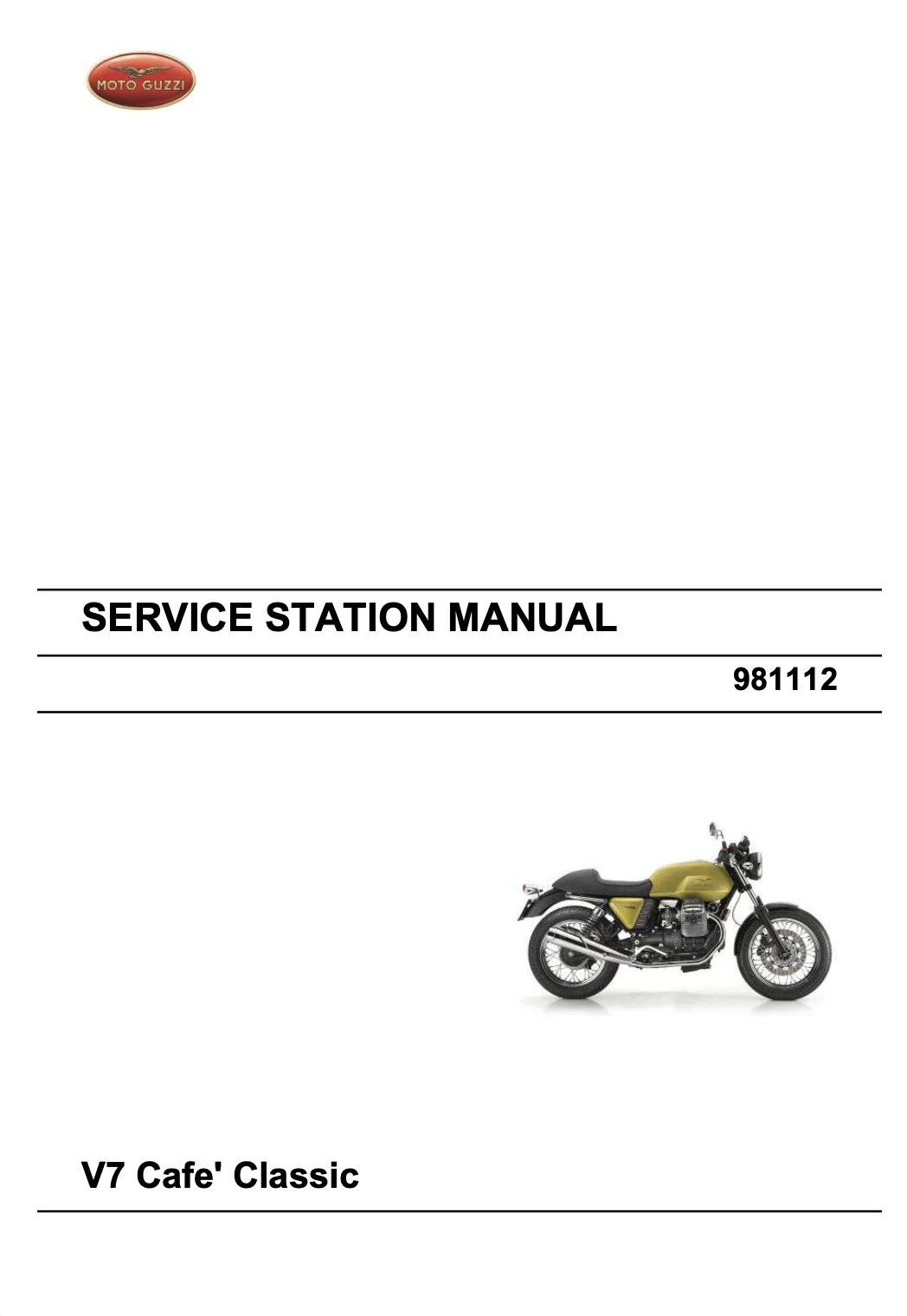

Moto Guzzi V7 Café Classic Service Manual (2009)

Moto Guzzi revived the V7 name at EICMA 2007 with the V7 Classic, bringing the company’s compact transverse V-twin and shaft-drive formula back into a deliberately traditional middleweight roadster. The Classic reached the press in 2008 and established the foundation for a broader family built around approachable dimensions, simple chassis hardware and styling that referred to earlier Mandello motorcycles without directly copying a single historic model. That platform created the context for a sportier derivative the following year.

The V7 Café Classic arrived in 2009 as the sporting interpretation of the first modern V7 generation. Piaggio Group’s official Moto Guzzi history records that the V7 Cafè was introduced that year and presented in Rome in March alongside the Griso SE. Rather than turning the V7 into a radically different performance motorcycle, Moto Guzzi reshaped the same compact platform around a more purposeful café-racer image, using lower handlebars, a narrower visual profile and period-inspired detailing to give the bike a more committed roadster character. See the manufacturer’s Moto Guzzi historical timeline.

Mechanically, the Café Classic remained closely related to the V7 Classic. Its 744 cc air-cooled 90-degree transverse V-twin used an 80 × 74 mm bore and stroke, 9.6:1 compression and Weber-Marelli electronic fuel injection. A dry single-disc clutch, five-speed gearbox and cardan shaft final drive retained the traditional Moto Guzzi layout. The steel double-cradle frame, 40 mm conventional fork, twin rear shock absorbers, wire-spoke 18-inch front and 17-inch rear wheels, 320 mm front disc and 260 mm rear disc made it a straightforward café-racer-style shaft-drive roadster rather than a mechanically separate model line.

The Café Classic also helped establish the idea that the revived V7 could support distinct personalities on one shared platform. Moto Guzzi pushed that concept further with the V7 Racer introduced in 2010, which added more overt competition-inspired styling, chrome and red detailing and numbered-edition presentation. The first-generation V7 family continued through 2011, by which point Piaggio reported more than 7,000 modern V7s sold worldwide since 2008. This period established the V7 as a sustainable model family rather than a one-off heritage exercise.

A major generational change followed for 2012. Moto Guzzi launched the second-generation 750 cc V7 range with Stone, Classic/Special-market variants and Racer, describing a substantially reworked engine in which more than 70 percent of the components had been redesigned and the induction system moved to a single throttle body. See Piaggio Group’s 2012 V7 launch announcement. That break separates the 2009 Café Classic historically and technically from the later V7 generations. This product covers the original 2009 Café Classic specification; related workshop publications are grouped in the Moto Guzzi V7 Café Classic service manual catalog.
