Moto Guzzi V7 Racer Service Manual (2010-2011)

Moto Guzzi brought the V7 name back into regular production in the late 2000s with the V7 Classic, using the compact small-block transverse V-twin and shaft-drive layout to create an accessible modern roadster with strong links to the company’s 1960s and 1970s motorcycles. The sportier idea arrived in 2010. Piaggio Group presented the V7 Racer in Milan that September as a factory-built special inspired by modified V7 Sports of the 1970s, deliberately blending the contemporary 750-class platform with visual references to Moto Guzzi’s earlier sporting machines. The manufacturer’s 2010 launch announcement documents that original concept.

The first Racer was conceived as the most expressive member of the V7 family rather than a separate high-performance superbike. Its polished chrome fuel tank was crossed by a leather strap, while the frame, wheel hubs and swingarm received a distinctive red finish inspired by the chrome-molybdenum frame of the early V7 Sport. A compact windscreen, single-seat arrangement and tail section with racing-number panels reinforced the period competition look. Moto Guzzi produced the model as a numbered edition, making the upper-yoke identification plaque part of the Racer’s identity. The result was a factory Italian café racer with shaft drive that used styling, finish and riding position to create its sporting character.

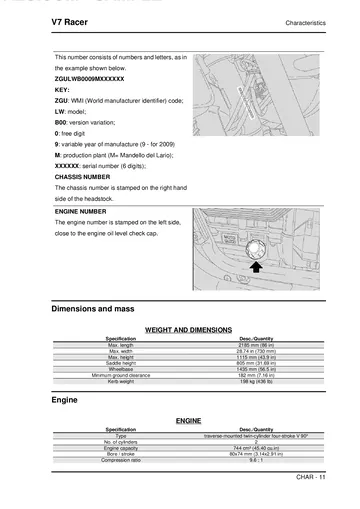

Mechanically, the original 2010-2011 generation retained the established 744 cc air-cooled 90-degree V-twin. It used an 80 × 74 mm bore and stroke, 9.6:1 compression ratio and Weber-Marelli electronic injection. Official Piaggio technical data rated this version at 35.5 kW at 6,800 rpm and 54.7 Nm at 3,600 rpm. Drive passed through a dry single-disc clutch and five-speed gearbox to the rear wheel by cardan shaft. The chassis used Moto Guzzi’s modular steel double-cradle frame, a 40 mm conventional fork, twin adjustable rear shock absorbers, wire-spoke 18-inch front and 17-inch rear wheels and a single 320 mm front disc. With a 15-litre tank and 198 kg kerb weight, the Racer remained closely related to the V7 Classic beneath its more dramatic bodywork.

The original specification had a short life because Moto Guzzi substantially re-engineered the V7 family for the next generation. At EICMA in November 2011, Piaggio announced a completely renewed V7 range with a redesigned engine, revised styling and a new single-feed induction system providing more than ten percent additional power and torque over the previous unit. The subsequent Racer gained that new engine architecture and a larger metal fuel tank, creating a clear technical break from the 2010-2011 motorcycle. This distinction matters historically because the Racer name continued while the underlying V7 platform changed significantly.

The sporting V7 lineage then continued through the V7 II Racer in 2015 and the third-generation V7 III Racer from 2017. Moto Guzzi marked the model’s tenth anniversary with the V7 III Racer 10th Anniversary, explicitly describing the Racer as having been born in 2010 and evolved through those later generations. See the manufacturer’s V7 Racer 10th Anniversary history. This product covers the original 2010-2011 specification documented by Service Station Manual 898983; later Racer generations should be matched to their corresponding service information. Related publications are grouped in the Moto Guzzi V7 Racer service manual catalog.
