Moto Guzzi Nevada 750 Base & Club Service Manual (2002-2003)

Moto Guzzi developed the Nevada as its middleweight custom line, extending the company’s small-block transverse V-twin tradition into a lower, more relaxed road motorcycle. In Moto Guzzi’s own retrospective on its custom models, the Nevada is described as the successor to the V35 Custom, V50 and V65 Florida line and as a model derived from the proven V75 platform. That lineage gave the Nevada the features that would define it for more than two decades: a 90-degree transverse V-twin, shaft final drive, manageable dimensions and an emphasis on easy everyday riding rather than heavyweight-cruiser bulk. See the manufacturer’s Moto Guzzi custom-model history.

The Nevada 750 became the core version of the family during the 1990s, using Moto Guzzi’s 744 cc small-block engine in a low-seat custom chassis. The Club variant added a more distinctive trim and equipment treatment while retaining the same fundamental mechanical package. By the end of the 1990s the Nevada had evolved into a mature middleweight cruiser with the durability and low-maintenance appeal of shaft drive, but without abandoning the relatively light steering and road manners associated with Moto Guzzi’s smaller twins.

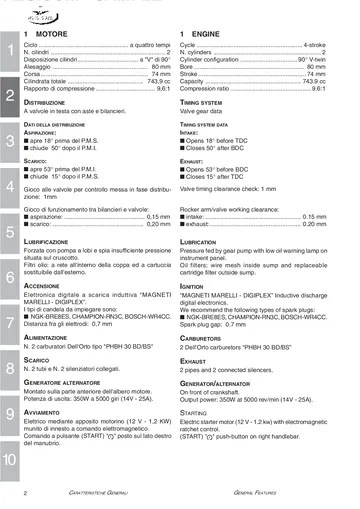

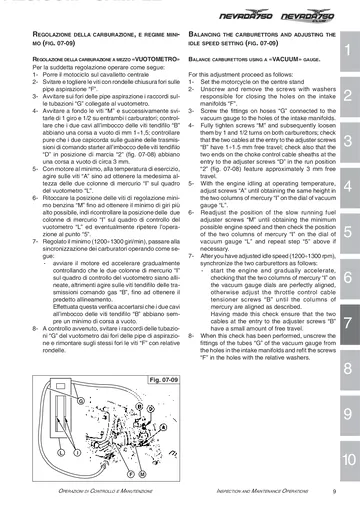

For 2002 Moto Guzzi introduced a distinct Base & Club generation. Factory parts-catalogue records separate the Nevada 750 Club and Base/Club machines of 2002-2003 from the earlier 1998-2001 Club series. Mechanically, the 2002-2003 bikes retained the 743.9 cc air-cooled pushrod V-twin, 80 × 74 mm bore and stroke, 9.6:1 compression, twin Dell'Orto PHBH 30 carburettors, five-speed gearbox and cardan shaft final drive. A 40 mm Marzocchi fork, wire-spoke wheels and a single 320 mm Brembo Gold Series front disc gave the model a straightforward, traditional chassis specification. The Base version weighed 176 kg dry, while the Club version was listed at 182 kg.

This period is a useful dividing line in Nevada development. The 2002-2003 Base & Club machines were still carburetted and used Magneti Marelli Digiplex ignition, while Moto Guzzi moved the range toward the Nevada 750 Classic i.e. generation from 2004, bringing electronic fuel injection and later continuing to refine the model through the 2000s and 2010s. The Nevada ultimately remained in the range for more than two decades before the V9 Roamer inherited its role as Moto Guzzi’s accessible middleweight Italian shaft-drive cruiser.

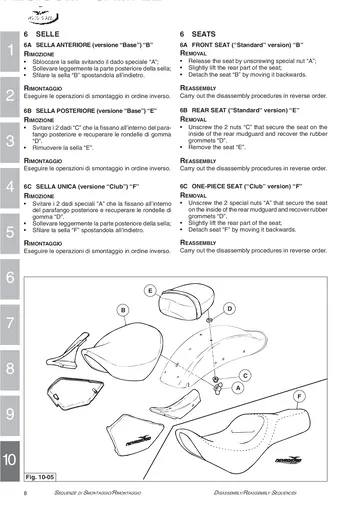

This product covers the 2002-2003 Nevada 750 Base and Club generation documented by factory publication 31 92 01 83. The manual itself includes model-specific differences such as the separate Base and Club seat arrangements and should not be extended automatically to the later fuel-injected Classic i.e. generation. Related workshop documentation is grouped in the Moto Guzzi Nevada 750 service manual catalog.
