Suzuki GSR600A ABS Supplementary Service Manual (2007)

Suzuki introduced the GSR600 as a new middleweight naked motorcycle for the 2006 model year. Suzuki's official 2006 annual report describes it as a naked model with distinctive styling and a high level of riding performance, noting particularly strong reception in Europe. The model combined a compact four-cylinder engine and street-focused ergonomics with styling intended to distinguish it from Suzuki's fully faired GSX-R supersport range.

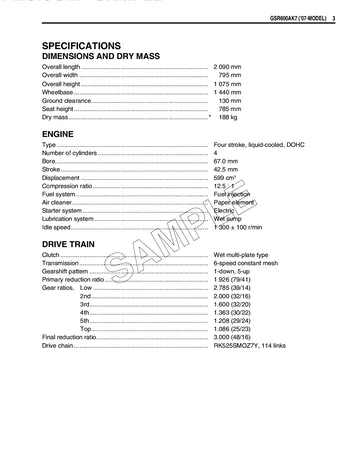

The GSR600 platform uses a 599 cm³ liquid-cooled DOHC inline-four with a 67.0 × 42.5 mm bore and stroke and a 12.5:1 compression ratio. Factory specifications list electronic fuel injection, a wet multi-plate clutch, six-speed constant-mesh transmission and chain final drive with a 48/16 reduction ratio. The combination gives the platform the mechanical character of a 600cc fuel-injected naked motorcycle while retaining practical road-oriented dimensions and an upright riding position.

For 2007, Suzuki offered the ABS-equipped GSR600A alongside the standard GSR600. The factory supplement documents the additional wheel-speed sensors, ABS control unit, hydraulic unit, indicator-light logic and self-diagnostic system required by the anti-lock braking package. The core 599 cm³ engine and drivetrain specifications remain unchanged, while dry mass increases to 188 kg in the supplement's specification table.

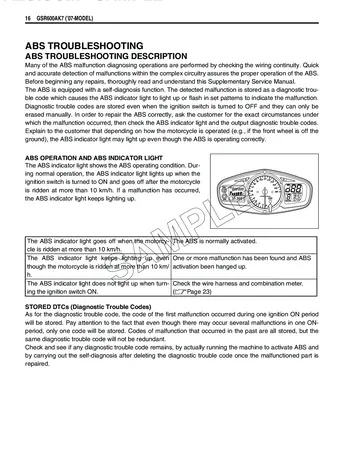

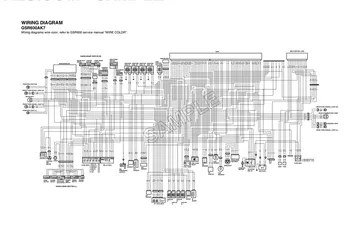

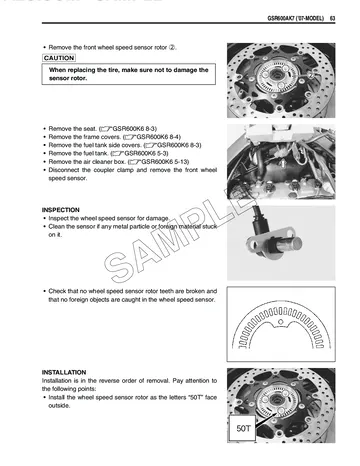

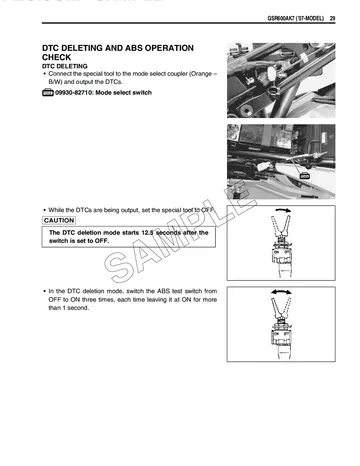

The ABS system adds a separate diagnostic layer to normal service work. The supplement covers diagnostic trouble-code output and deletion, Suzuki Diagnostic System procedures, active control tests, wheel-speed sensor checks, ABS control-unit and hydraulic-unit servicing, brake-hose routing and the dedicated ABS wiring diagram. These procedures are specifically the differences from the standard GSR600K7 and are intended to be used alongside the main GSR600 service manual.

This listing is specifically for the 91-page GSR600AK7 2007 ABS supplementary service manual, not the complete base workshop manual. Suzuki instructs technicians to use it together with GSR600 Service Manual Part No. 99500-36161-01E for procedures not repeated here. Related publications are organized in the Suzuki GSR600 manual catalog.
