Aprilia RSV4 RR / RSV4 RF Service Manual (2015-2016)

Aprilia created the RSV4 platform in 2009 as a clean-sheet replacement for its earlier V-twin superbikes, combining a compact 65-degree V4 with an aluminium twin-beam chassis and electronics developed alongside Aprilia Racing. By the end of the 2014 World Superbike season the architecture had accumulated seven world titles, and Aprilia used that racing cycle as the starting point for a major road-bike redesign. Piaggio Group's EICMA 2014 announcement described the incoming RSV4 RR as a new generation of RSV4, with revised bodywork, a reworked chassis, more advanced aPRC electronics and a new 65-degree V4 producing more than 200 hp.

The 2015 generation kept the 999 cm³ capacity but substantially reworked the engine. Factory dimensions remained 78 × 52.26 mm, while compression increased to 13.5 ± 0.5:1. Aprilia revised the airbox, intake system and numerous internal components to reduce friction and improve combustion and breathing, raising peak output to 201 hp at 13,000 rpm and 115 N·m at 10,500 rpm in period factory material. Electronic injection uses two injectors per cylinder, four 48 mm motorised throttle bodies, variable-height intake ducts and Ride-by-Wire. A six-speed gearbox, slipper/anti-judder wet clutch and 16/41 chain final drive complete the 201-hp narrow-V4 superbike powertrain.

The chassis remained highly adjustable but was developed further for the new generation. Aprilia used an adjustable aluminium dual-beam frame, twin 320 mm floating front discs, a 220 mm rear disc and Race ABS. The standard RR uses a fully adjustable 43 mm Sachs upside-down fork and Sachs rear shock, while the Race Pack and RSV4 RF receive Öhlins suspension and forged wheels. The RF therefore was not a separate engine family but the higher-specification chassis version of the same generation, aimed more directly at track-focused riders. Wheelbase is 1,435 mm and saddle height 847 mm, with 120/70 ZR17 front and up to 200/55 ZR17 rear tyre fitment.

Electronics were equally central to this phase of RSV4 development. The aPRC package integrates traction control, wheelie control, launch control and clutchless shifting, while the ABS system works with wheel-speed sensing and the inertial platform. Aprilia also introduced the V4-MP multimedia and telemetry concept around this generation, allowing riders to record performance data and interact with electronic settings through a smartphone. Piaggio's period 2015 RSV4 feature identifies the RF's Race Pack equipment and 201 hp output, while the company's MY2016 material continued the RR/RF pairing and the same basic engine and chassis concept.

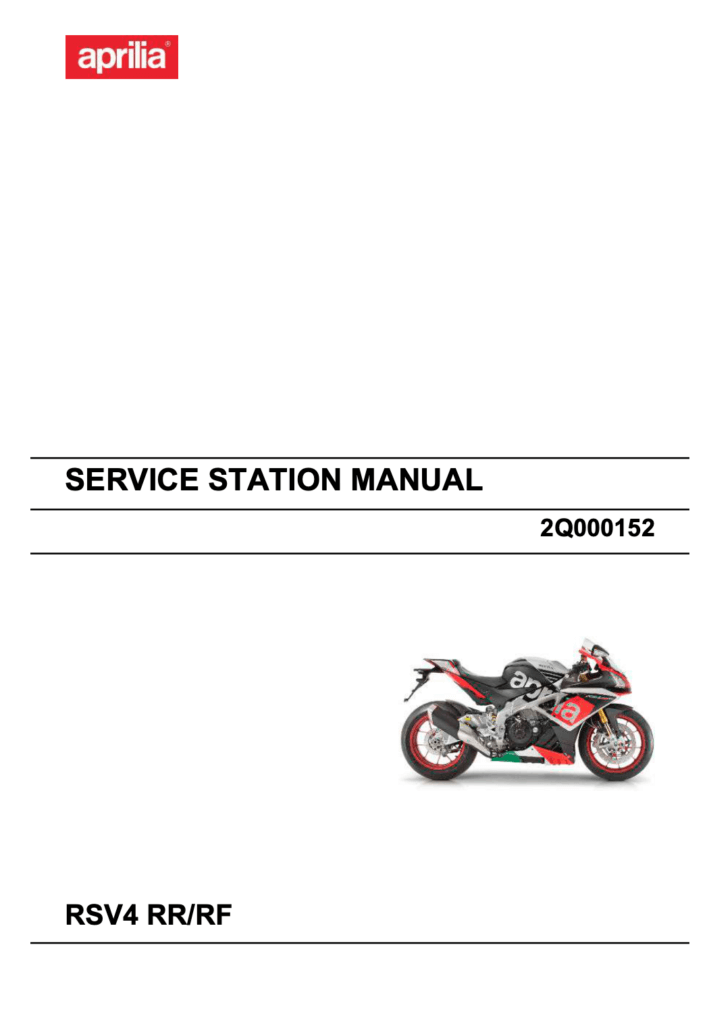

The next major evolutionary step arrived for 2017. Aprilia retained the 201 hp and 115 N·m V4 figures but adapted the engine to Euro 4 and expanded the electronics with cornering ABS, a revised aPRC package, downshift-capable Quick Shift, pit limiter and cruise control. That update places the 2015-2016 RR/RF machines as the first phase of this new-generation platform before the later electronics and emissions revision. This listing is based on Service Station Manual 2Q000152, which explicitly contains MY2015 RR, MY2015 Race Pack/RF and MY2016 RR/RF procedures. Related documents are grouped in the RSV4 RR and RSV4 RF categories.
