Kawasaki Vulcan VN1600 Classic Service Manual (2003–2004)

Kawasaki introduced the Vulcan 1600 Classic for the 2003 model year as the next step in its large-displacement traditional cruiser line. Kawasaki's official 2003 Owner Center record identifies the first model as VN1600-A1. Compared with the preceding Vulcan 1500 Classic concept, the 1600 moved to a 1,552 cc engine and a longer, lower chassis intended to emphasize relaxed low-speed torque, stability and classic cruiser proportions rather than outright sporting performance.

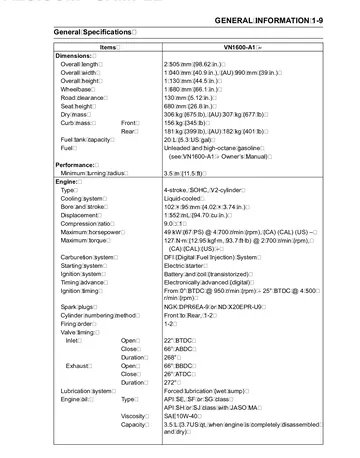

The VN1600A platform is a characteristic early-2000s big-bore V-twin cruiser. Its liquid-cooled 4-stroke SOHC V-twin uses a 102 × 95 mm bore and stroke, 9.0:1 compression and digital fuel injection. Power is sent through a wet multi-disc hydraulic clutch and five-speed constant-mesh transmission to a shaft final drive, a combination aimed at smooth low-maintenance road use. The tubular double-cradle frame, long 1,680 mm wheelbase, low 680 mm seat and 16-inch wheels give the Classic its low-slung stance, while dual front discs and fuel injection distinguish it technically from older carbureted cruiser designs.

The Classic remained part of Kawasaki's VN1600 range after the A1/A2 models documented in this edition. Kawasaki's official 2008 parts record still identifies the Vulcan 1600 Classic as VN1600A8FA, showing that the A-series model family continued through 2008. Other VN1600 derivatives, including the Nomad and Mean Streak, developed alongside the Classic but used their own model codes and should not be treated as identical service applications. For other versions, browse the Kawasaki VN1600 manuals in this catalog.

For 2009 Kawasaki moved its traditional large-cruiser line to the Vulcan 1700 family; the company's 2009 Owner Center record identifies the succeeding Vulcan 1700 Classic as VN1700E/G. The important distinction for this download is revision-specific: the uploaded factory book is part no. 99924-1309-02 and its application table explicitly names only 2003 VN1600-A1 and 2004 VN1600-A2. Later VN1600A years belong to the same broader model lineage, but Kawasaki issued later revisions of the service manual, so this particular PDF is conservatively matched to 2003–2004 rather than assuming complete 2005–2008 procedure coverage.
