Moto Guzzi Breva V1100 Service Manual (2005-2007)

Moto Guzzi introduced the Breva V1100 in March 2005 at a pivotal moment for the Mandello del Lario company. Piaggio had acquired Moto Guzzi at the end of 2004, and the Breva 1100 became one of the first major motorcycles associated with the new ownership era. The smaller Breva 750 had already reopened the roadster line, but the 1100 moved the concept into a much larger, more sophisticated class. Piaggio Group’s official Moto Guzzi history describes the March 2005 Breva 1100 presentation as a successful new Italian entry in the naked-bike segment.

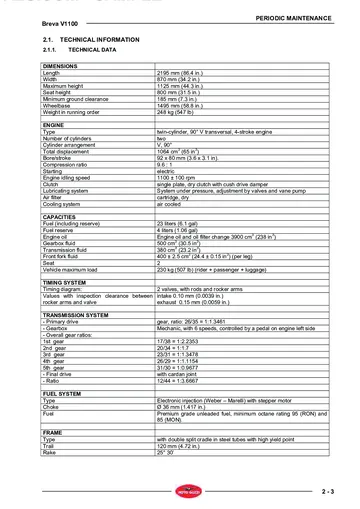

The engine remained unmistakably Moto Guzzi: an air-cooled transverse 90-degree V-twin with 1,064 cc displacement, a 92 × 80 mm bore and stroke, pushrods and two valves per cylinder. The 2005 factory specification used 9.6:1 compression, Weber-Marelli electronic injection and a six-speed gearbox. A period factory brochure rated the engine at 63 kW (86 hp) at 7,500 rpm and 85 Nm at 6,800 rpm. Compared with the preceding V11-era powertrain, the Breva generation emphasized smoother response, lower mechanical inertia and better integration with electronic fuel management rather than simply chasing peak output.

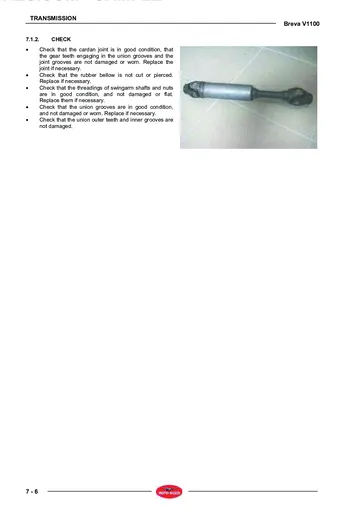

The chassis and final drive were among the model’s most important advances. The Breva used a high-strength steel double-cradle frame, 45 mm fork, progressive-link rear monoshock, 17-inch cast wheels and twin 320 mm front discs. Its reactive cardan system used a double universal joint and floating bevel-gear arrangement to reduce the rise-and-fall reactions associated with older shaft-driven Moto Guzzis. With a 1,495 mm wheelbase, 23-litre fuel tank and upright 800 mm seat, it was conceived as a large Italian shaft-drive roadster equally suited to everyday riding and longer-distance use.

The Breva family broadened quickly. From April 2006 Moto Guzzi added an 850 cc Breva, giving the same general roadster concept a lower-displacement alternative. By the last months of 2007, Piaggio reported another major change: the Breva received the 1200 engine, creating the model that would supersede the original 1100 at the top of the range. Factory parts catalogue GU077 identifies the original Breva V IE 1100 as a 2005-2007 generation, matching that transition. The Breva platform also fed into related models such as the Norge touring family and helped establish the chassis and shaft-drive direction used across Moto Guzzi’s renewed big-block range.

This product covers the original 2005-2007 Breva 1100 generation and is based on the July 2005 USA factory workshop publication 8140861. It concentrates on vehicle service, maintenance, fuel injection, chassis, electrical systems and transmission work rather than a complete internal engine rebuild. Related workshop documentation is grouped in the Moto Guzzi Breva V1100 service manual catalog.
