Moto Guzzi Breva V1200 ABS Service Manual (2007-2012)

Moto Guzzi developed the Breva family as a central part of its early-2000s road-bike renewal. The original 750 established the name in 2003, the larger Breva 1100 followed in March 2005, and an 850 version broadened the range from April 2006. The next step came late in 2007, when Piaggio reported a major Breva upgrade based around the 1200 engine. That evolution produced the Breva V1200 ABS, placing the model at the top of the Breva roadster line while retaining the upright ergonomics and practical all-round character that distinguished the family. Piaggio Group’s official Moto Guzzi history documents the Breva family’s role in the marque’s revival, while the 2007 Piaggio Group annual report records the move to the 1200 engine.

The 1200 retained Moto Guzzi’s traditional air-cooled transverse 90-degree big-block layout rather than adopting the newer four-valve-per-cylinder architecture introduced on the Griso 8V. Displacement was 1,151 cc from a 95 × 81.2 mm bore and stroke, with 9.8:1 compression and two pushrod-operated valves per cylinder. The workshop publication lists more than 65 kW, or 90 CV, at 7,500 rpm. Magneti Marelli IAW 5AM2 electronic management, 45 mm throttle bodies, lambda feedback and a stepper motor handled fuelling and idle control. A hydraulically operated dry twin-disc clutch drove a six-speed gearbox and cardan shaft final drive.

The chassis preserved the larger Breva platform’s emphasis on stability and real-world road use. A high-strength tubular-steel frame carried a 45 mm telescopic fork with 120 mm travel and a single-sided progressive-link rear suspension with 140 mm travel. The 1,495 mm wheelbase, 23-litre tank and 800 mm seat made the motorcycle suitable for commuting and longer-distance riding, while twin 320 mm front discs and a 282 mm rear disc provided the braking hardware. The ABS version added wheel-speed sensors, a dedicated hydraulic control unit and diagnostic functions integrated with the motorcycle’s electrical system, making it a more complete large-capacity Italian shaft-drive roadster than the earlier non-ABS Breva generations.

The Breva 1200 remained a deliberately traditional two-valve roadster while Moto Guzzi’s range diversified around it. The 1200 Sport offered a more sporting interpretation of related big-block technology, the Norge developed the platform toward full touring, and the newer Griso 8V and Stelvio moved into four-valve performance and adventure roles. Official Moto Guzzi price material still listed the Breva 1200 and Breva 1200 ABS in 2011, and European commercial records place the end of the model’s sale period in 2012. Its relatively stable specification therefore makes the 2007-2012 period a coherent generation rather than a sequence of major redesigns.

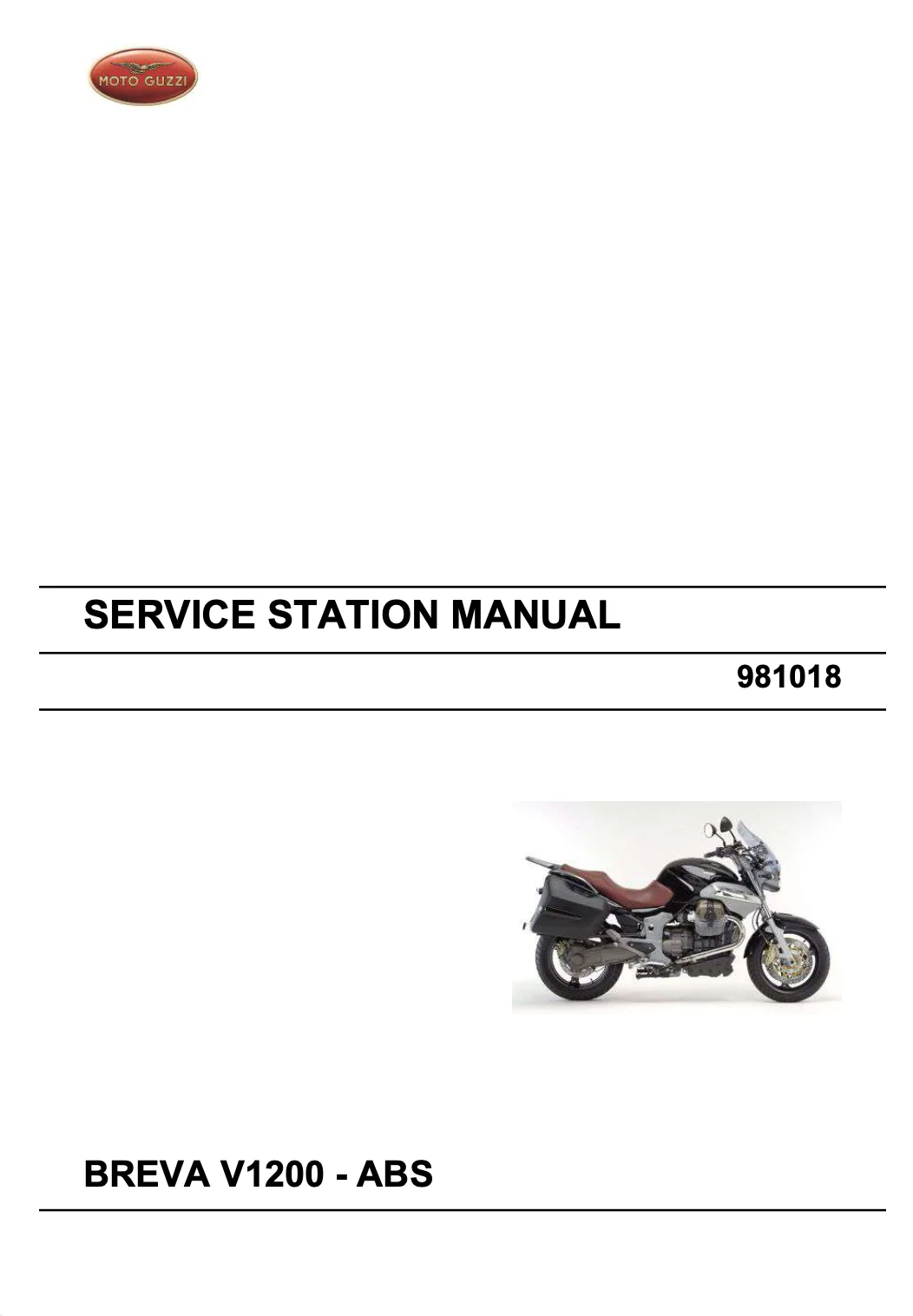

This product covers factory Service Station Manual 981018, the English Breva V1200 ABS workshop revision archived as the April 2013 edition. The publication is model-specific and postdates the end of the documented 2007-2012 commercial period, providing consolidated service information for that generation rather than introducing a 2013 model. Related workshop documentation is grouped in the Moto Guzzi Breva V1200 ABS service manual catalog.
