Moto Guzzi California 1400 Custom / Touring Service Manual (2014)

Moto Guzzi developed the California 1400 as a clean-sheet successor to the long-running California 1100 family rather than a simple enlargement of the older platform. The California name traced its roots to Moto Guzzi’s American police motorcycles and became one of the marque’s defining touring lines, but the new generation was intended to reposition the model as a modern flagship. Piaggio first previewed the 1400 cc prototype in 2011 and formally launched the production California 1400 at EICMA in November 2012 in two distinct forms, Touring and Custom. Piaggio’s official EICMA launch release described them as separate models in character and intended use.

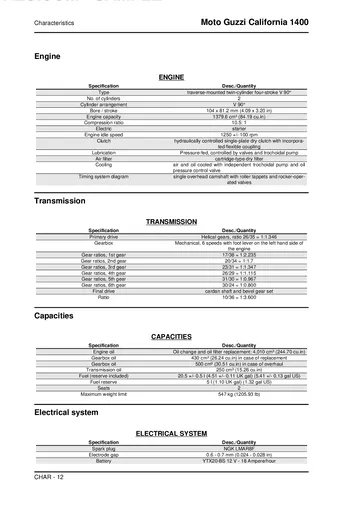

The platform centred on a 1,379.6 cm³ transverse 90-degree V-twin with a 104 × 81.2 mm bore and stroke and 10.5:1 compression. Factory launch specifications rated it at 71 kW (96 hp) at 6,500 rpm and 120 Nm at only 2,750 rpm. A hydraulically operated single-plate dry clutch, six-speed gearbox and shaft final drive retained the classic Moto Guzzi mechanical layout, while Marelli IAW 7SM management, a 52 mm ride-by-wire throttle body, dual lambda sensors and three engine maps moved the drivetrain firmly into the electronic era. Cruise control, MGCT traction control and two-channel ABS were integral to the new platform rather than later add-ons.

The chassis was also entirely new, using a steel closed double-cradle frame with an elastokinematic engine-mounting system designed to isolate vibration. A 46 mm fork, twin 320 mm radial-caliper front brakes and the long 1,685 mm wheelbase gave the motorcycle the scale expected of a flagship cruiser. The two main versions were deliberately differentiated: Touring added wind protection and luggage and weighed 337 kg kerb, while Custom used a lower, cleaner presentation, longer adjustable rear shocks and weighed 318 kg. Together they formed a large-capacity ride-by-wire Italian luxury cruiser platform that combined traditional transverse-V-twin identity with modern electronics and long-distance capability.

By 2014 the California 1400 had become the top of Moto Guzzi’s road range, with the Custom and Touring still serving as the core models. The platform then expanded significantly at EICMA 2014. Piaggio introduced the California 1400 Touring S.E. for 2015 and used the same 1400 architecture as the basis for the new Eldorado and the more aggressive Audace, while later development produced the MGX-21 bagger. Piaggio Group’s EICMA 2014 release documents this transition from the original Custom/Touring pair into a broader 1400 cc family.

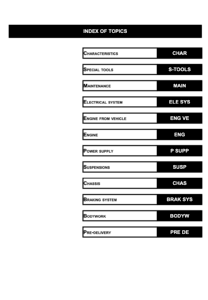

This product covers factory Service Station Manual B043157, the April 2014 California 1400 workshop publication. The source itself distinguishes Touring and Custom specifications and procedures; some archive indexes label the edition “Classic and Touring,” but Moto Guzzi’s own 2014 product naming uses Custom and Touring. A separate 2015 workshop publication exists for the later Touring, Touring S.E. and Custom range, so this listing is conservatively limited to the 2014 edition rather than extended through 2019. Related documentation is grouped in the Moto Guzzi California 1400 service manual catalog.
