Moto Guzzi Norge GT 8V Service Manual (2011)

Moto Guzzi revived the Norge name for its modern long-distance flagship in 2006. The name deliberately connected the new motorcycle with Giuseppe Guzzi’s 1928 GT 500 “Norge,” ridden to the Arctic Circle to demonstrate the durability and comfort of Moto Guzzi’s then-new rear-suspension concept. The modern Norge 1200 returned the company to the full-size Gran Turismo segment with a transverse 90-degree V-twin, shaft final drive, full fairing and generous touring equipment. Piaggio Group’s official Moto Guzzi history records the Norge 1200’s May 2006 launch as the marque’s return to Gran Turismo.

The first modern Norge established a clear role within the post-2004 Moto Guzzi range. It shared the company’s contemporary big-block architecture with models such as the Breva and Griso, but its emphasis was long-distance road travel rather than naked-roadster performance. Full weather protection, a substantial fuel tank, passenger accommodation and shaft drive made it Moto Guzzi’s dedicated tourer. In July 2006 the factory reinforced that identity by sending fourteen Norge 1200 GT motorcycles from Mandello del Lario to the North Cape, retracing the spirit of Giuseppe Guzzi’s original 1928 journey.

A major generational update arrived for 2011 with the Norge GT 8V. Piaggio presented the revised motorcycle as a substantially renewed long-haul flagship, centred on the latest four-valve-per-cylinder evolution of the 1151 cc V-twin. The redesign went beyond the engine: the full fairing was reshaped to improve aerodynamic, acoustic and thermal protection, suspension settings were revised, the centre stand was redesigned for easier use and the seat was reshaped and lowered. The 2011 launch material positioned the bike as a more refined and capable continuation of the Norge concept rather than a completely unrelated replacement. See Piaggio Group’s 2011 Norge GT 8V introduction.

Mechanically, the 2011 generation retained the characteristics that made the Norge distinctive while modernising the package. The 1151 cc air/oil-cooled 90-degree V-twin used four valves per cylinder, electronic fuel injection, a hydraulic dry clutch, six-speed gearbox and Moto Guzzi’s cardan final drive. A 45 mm adjustable fork, progressive-link rear monoshock, 17-inch cast-alloy wheels and twin 320 mm front discs with ABS kept the chassis firmly road focused. With a 23-litre tank, full fairing, electric-windscreen provision and extensive electrical equipment, it remained a large-capacity Italian shaft-drive grand tourer designed around sustained road mileage and two-up travel.

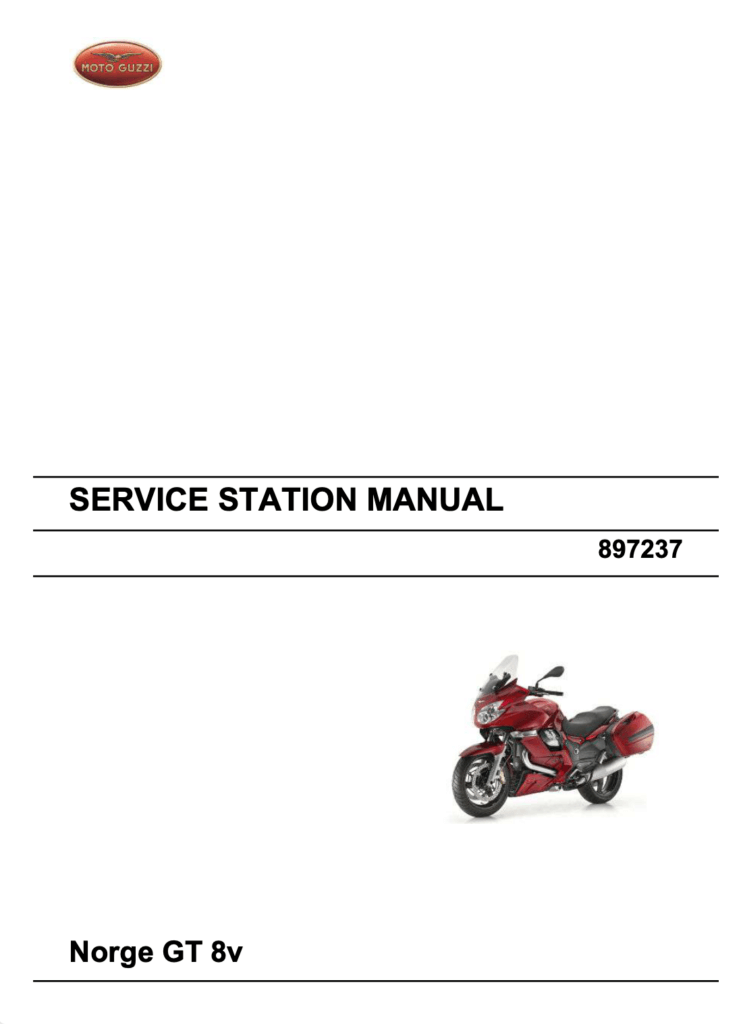

This product covers the 2011 Norge GT 8V specification documented by factory Service Station Manual 897237. The source publication itself identifies 2011 and does not establish universal compatibility with later model-year revisions, so later Norge GT 8V motorcycles should be matched to their corresponding service information. Related workshop publications are grouped in the Moto Guzzi Norge GT 8V service manual catalog.
