Suzuki GSX1400 Service Manual (2002)

Suzuki introduced the GSX1400 in 2001 as a large-displacement naked roadster built around a newly developed oil-cooled inline-four. Suzuki's official GSX1400 digital archive describes it as the company's flagship big naked bike, combining imposing traditional roadster styling with a newly developed fuel-injected SACS engine. The model was designed to deliver strong low- and mid-range torque while remaining comfortable for long-distance road use.

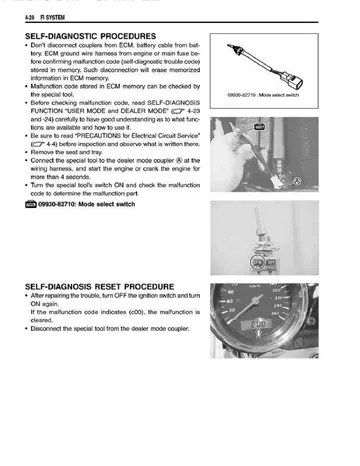

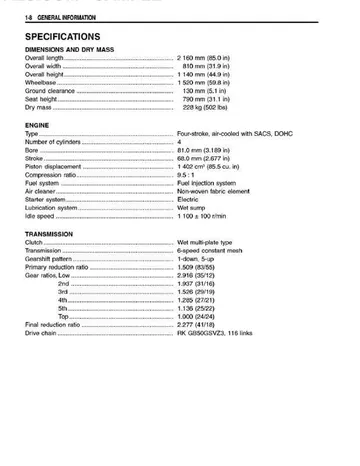

The GSX1400 platform uses a four-stroke DOHC inline-four with Suzuki Advanced Cooling System oil cooling. Suzuki's archive lists the launch model at 1,401 cm³, while the factory K2 service specification in this publication lists 1,402 cm³ from an 81.0 × 68.0 mm bore and stroke and a 9.5:1 compression ratio. Electronic fuel injection was a major feature of the platform, paired with transistorized ignition and extensive self-diagnostic functions. Power is transmitted through a wet multi-plate clutch and six-speed constant-mesh gearbox to a chain final drive.

The chassis follows the classic big-roadster formula with a 1,520 mm wheelbase, 17-inch radial tires, twin front brake discs and conventional twin rear shocks. Factory specifications list a 228 kg dry mass and a 22-litre fuel tank. Combined with the broad torque characteristics of the large inline-four, these features define the machine as a fuel-injected 1400cc naked motorcycle intended for strong real-world road performance rather than supersport-style peak-rpm riding.

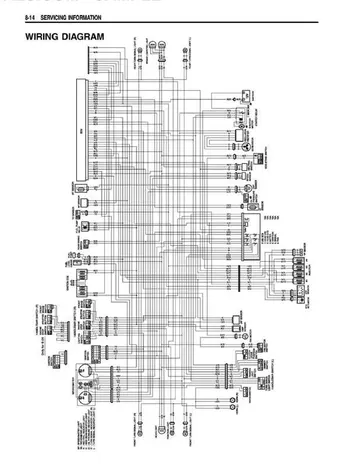

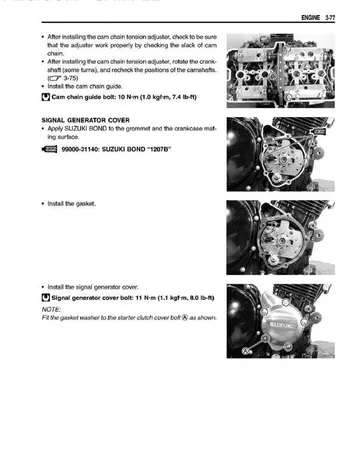

The GSX1400's introduction also marked Suzuki's continued development of large SACS-cooled road engines after earlier Bandit and GSX models. The official archive records 74 kW (100 PS) and 126 N·m for the launch model, emphasizing tractable torque and long-distance usability. The K2 factory manual retains the same fundamental platform while documenting the service procedures, FI diagnostics, chassis settings and electrical systems specific to the 2002 model. Related publications are organized in the Suzuki GSX1400 manual catalog.

This listing is specifically for the 2002 GSX1400K2 factory service manual. Although the PDF filename references 2001 and the publication is copyright 2001, the factory model identification is explicitly 2002-MODEL and no K1 or later K3-K8 supplementary sections are included. Verified applicability is therefore 2002 only.
