Buell S1 Lightning Service Manual (1996-1997)

Buell launched the S1 Lightning for the 1996 model year as a stripped-back, short-wheelbase roadster built around the company’s increasingly sport-focused interpretation of the Harley-Davidson 1200 V-twin. The S1 followed Buell’s earlier faired machines but removed most of the bodywork, paired a wide handlebar with an extremely compact chassis, and emphasized agility and mechanical character over touring comfort. Cycle World’s 1996 production-bike test described the Lightning as a sharp-handling, highly distinctive naked sport motorcycle and noted that Harley-Davidson’s investment in Buell had helped improve production quality while allowing Erik Buell to retain an unconventional engineering direction. See Cycle World’s 1996 S1 Lightning road test.

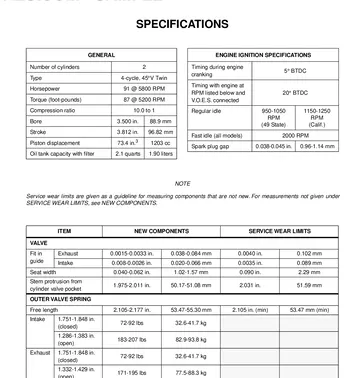

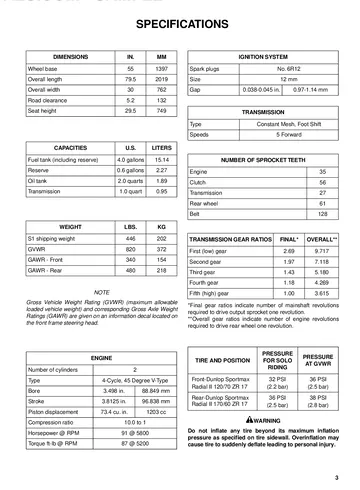

The original platform used a 1,203 cm³ air-cooled 45-degree V-twin with 10.0:1 compression, a Keihin constant-velocity carburetor, five-speed transmission and belt final drive. Factory specifications list 91 hp at 5,800 rpm and 87 lb-ft of torque at 5,200 rpm. The 1,397 mm wheelbase, 749 mm seat height and 17-inch radial tyres helped give the machine unusually compact proportions for a large-displacement American motorcycle. The tubular chassis isolated the powertrain with Buell’s mounting system, while adjustable suspension and a large single front brake supported the S1’s role as an American V-twin streetfighter.

For 1997 the Lightning remained fundamentally the same motorcycle but received a useful collection of production refinements. Buell adopted the later-style clutch release ramp across the model year, a remote idle adjuster, revised front brake rotor fasteners, an updated swingarm pivot arrangement, new handlebar switches and connectors, a relocated horn and wiring-harness changes. The factory specifically stated that the 1996 engine and drive/transmission procedures continued to apply to 1997 models, showing that the second model year was an evolution of the original platform rather than a mechanical redesign.

A larger change arrived for 1998. Buell introduced the S1W White Lightning as a high-output derivative with Thunderstorm cylinder heads and other performance and equipment changes; Cycle World reported 101 hp at the crank, a larger fuel tank and revised braking equipment for the special model. Harley-Davidson issued a separate 1998 S1/S1W service publication, confirming the model-year break. For 1999 the fuel-injected X1 Lightning succeeded the S1 family with a revised frame, aluminum swingarm, improved ergonomics and greater refinement while retaining the basic big-twin Lightning idea. See Cycle World’s introduction of the 1999 X1 Lightning.

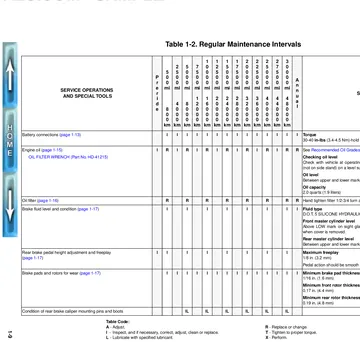

This 343-page file combines the 1996 base service information with the factory 1997 model-year supplement, so its verified applicability is 1996-1997. Harley-Davidson’s official publication index lists the 1996 base manual as 99490-96Y, the 1997 supplement as 99490-97YA and the separate 1998 S1/S1W manual as 99490-98Y. Related publications are grouped in the Buell S1 Lightning service manual catalog.
