Royal Enfield Classic 500 & 350

Royal Enfield Classic 500/350 Repair Manual

Complete PDF version of the Service Manual for the Royal Enfield Classic 500 $ 350. A MUST for every Classic owner.

Download: Immediately after payment!

OEM Original factory workshop manual.

Models covered by this manual: 2009 and later

Number of pages: 229 pages

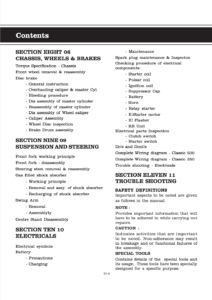

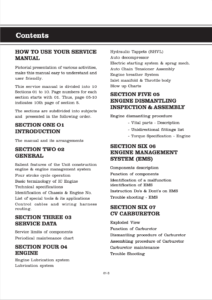

Table of contents:

Royal Enfield Classic 500 $ 350 Royal Enfield Classic 500 $ 350

This PDF repair manual can be downloaded right after the payment process in complete, on the device of your choice.

We do not offer printed manuals, for the following reasons:

  1. it is more eco-friendly to use a digital version
  2. your manual never gets dirty or greasy
  3. you can always choose to print the specific page(s) you need to work on your bike
  4. you receive your manual immediately after payment
  5. it is searchable

Paypal Secure checkout


Royal Enfield Classic 350 & 500

The Royal Enfield Classic 350 and Classic 500 are motorbike models that have been in production since 2009.

In their 350cc and 500cc models, the Classic 350 and Classic 500 also use the new unit construction engine. The Classic 350, on the other hand, has a carburettor for fuel delivery, and the Classic 500 has EFI. Instead of an ammeter, the Classic 350 includes a low fuel indication light and an engine check light. The ammeter on the Classic 350 is more of a relic, as it serves no purpose in the current Classic 350. When the piston was at the top dead center (CB points closed) on older versions with CB points, the ammeter would stay in the middle.

This innovation allowed the rider to easily bring the piston to top dead center and kick start the engine using the decompression lever. Both of these versions are more costly and aimed at a market segment higher than that of the Royal Enfield Bullet 350 and Bullet 500.

The Classic 350 and Classic 500 are available in a number of colors, including Stealth Black, Chrome, Battle Green, and Gunmetal Grey.

In 2017, Royal Enfield upgraded Classic 500 cars with Euro 4 compliance, which includes front and rear ABS brakes and an improved pollution control system.

In some markets, Royal Enfield released Classic 350 models with ABS in 2018. In 2019, the manufacture of the classic 500 is halted, and the business introduces new bs6 engines with dual channel abs.

Classic 500 Tribute Black, a last “end of construction” manufacturing run of 1000 pieces, is released.
