Suzuki GSX-R750 Service Manual (2006)

Suzuki redesigned the GSX-R750 for 2006 around the compact chassis concept shared with the GSX-R600, while retaining the larger 750 cm³ engine that distinguishes the model within the supersport class. Suzuki's official GSX-R750 digital archive describes the 2006 model as a compact-package supersport with a newly designed engine that was 34 mm lower and 57 mm shorter than the previous version. The swingarm was lengthened by 35 mm to improve traction and rider movement without increasing the overall wheelbase.

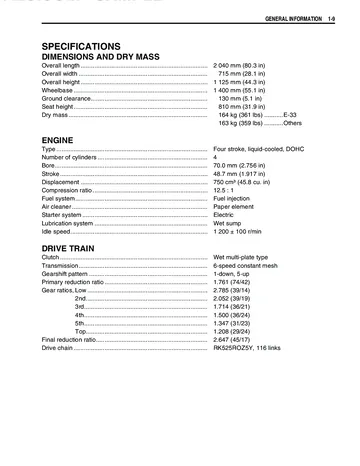

The GSX-R750 uses a 750 cm³ liquid-cooled DOHC inline-four with a 70.0 × 48.7 mm bore and stroke and a 12.5:1 compression ratio. The factory service specification lists electronic fuel injection, a wet multi-plate clutch and a six-speed constant-mesh transmission. Final drive is by chain with a 45/17 reduction ratio. Suzuki's official archive also notes wider crankcase ventilation passages, twin injectors, an auxiliary balance shaft and a back-torque-limiting clutch as important elements of the 2006 redesign.

The chassis combines a 1,400 mm wheelbase with an 810 mm seat height and factory-listed dry mass of 163 kg for most markets, or 164 kg for California. Suspension is fully adjustable at both ends, with an inverted telescopic front fork and link-type rear system, while radial-mount front brake calipers and 17-inch radial tires support the bike's track-oriented role. These features define the K6 as a 750cc fuel-injected supersport motorcycle built around low mass, compact dimensions and strong midrange performance.

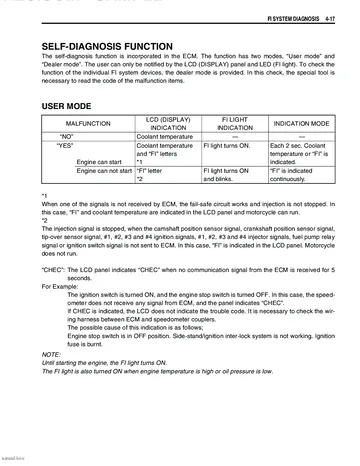

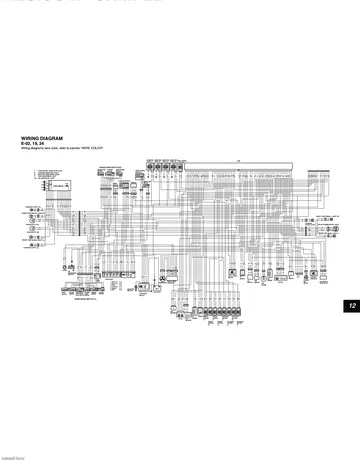

Electronics and diagnostics are a substantial part of the platform. The factory publication includes ECM terminal data, fuel-injection fault codes, sensor testing, secondary-throttle system diagnosis, charging and starting systems, combination-meter inspection and market-specific wiring diagrams. The 2006 redesign sits between Suzuki's 2004 GSX-R750 update and the later 2008 revision, making the K6 a distinct generation rather than a simple continuation of the earlier chassis.

This listing is specifically for the 522-page GSX-R750K6 factory service manual. The publication identifies the motorcycle as the 2006 model and contains no K7 supplementary service section, so verified applicability is 2006 only. Related factory publications are organized in the Suzuki GSX-R750 manual catalog.
