Suzuki GSX-R750 Service Manual (1996-1998)

Suzuki gave the GSX-R750 a major redesign for 1996, replacing the previous double-cradle layout with a newly developed twin-beam aluminum frame and a new liquid-cooled inline-four engine. Suzuki's official GSX-R750 digital archive describes the 1996 model as a full model change featuring the Suzuki Ram Air Direct system, a compact 1,400 mm wheelbase and a dry mass of 179 kg for most markets. The redesign substantially reduced weight compared with the 1992-generation machine while retaining the GSX-R750's race-derived supersport focus.

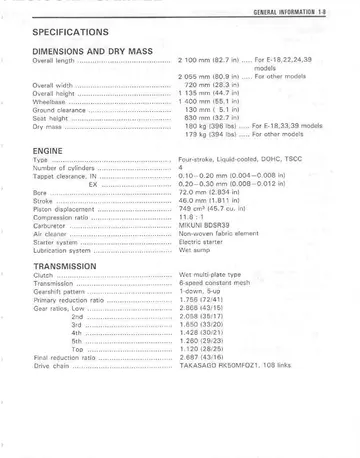

The GSX-R750 in this generation uses a 749 cm³ liquid-cooled DOHC inline-four with a 72.0 × 46.0 mm bore and stroke and an 11.8:1 compression ratio. The 1996 and 1997 factory specifications use Mikuni BDSR39 carburetors, paired with a wet multi-plate clutch and six-speed constant-mesh transmission. Final drive is by chain with a 43/16 reduction ratio. This combination defines the early SRAD-generation bike as a lightweight 750cc supersport motorcycle built around compact packaging, high-rpm performance and reduced mass.

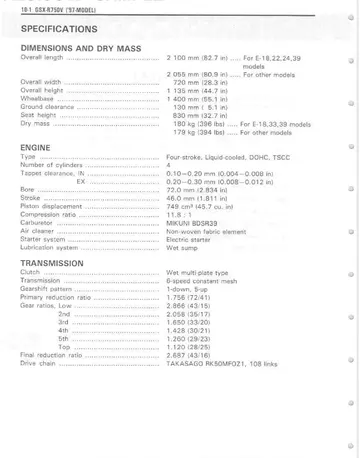

The 1997 GSX-R750V section shows that Suzuki retained the same fundamental engine dimensions and drivetrain while documenting model-year service changes. Factory specifications continue to list the 749 cm³ engine, 11.8:1 compression ratio, BDSR39 carburetors, six-speed gearbox and 43/16 final drive. This makes the 1997 model an evolutionary continuation of the 1996 redesign rather than a separate platform.

For 1998, Suzuki made a more significant technical step by replacing the carburetors with electronic fuel injection. Suzuki's official archive specifically highlights the wide-body 46 mm throttle system and its two-stage control strategy, along with revised cam specifications, lighter internal engine parts, a closer-ratio transmission and reinforced rear shock attachments. The factory GSX-R750W supplement confirms that the 749 cm³ bore and stroke and 11.8:1 compression ratio remain unchanged while the fuel system and final-drive gearing are revised.

This listing is for the complete 557-page factory compilation covering GSX-R750T (1996), GSX-R750V (1997) and GSX-R750W (1998). The PDF is printable but is a scanned publication without a usable searchable text layer. Related manuals are organized in the Suzuki GSX-R750 manual catalog.
