Yamaha FZ6R Service Manual (2009)

Yamaha introduced the FZ6R for the 2009 model year as a fully faired middleweight road-sport motorcycle aimed at riders who wanted everyday usability with sportbike styling. Period coverage from Cycle World described it as an all-new, entry-level middleweight rather than simply a renamed FZ6, with a steel-tube chassis, adjustable ergonomics and a full fairing. Yamaha's own U.S. parts catalog identifies the 2009 36P-series machine as FZ6R. See the official Yamaha 2009 FZ6R parts listing and the 2009 FZ6R first-look report.

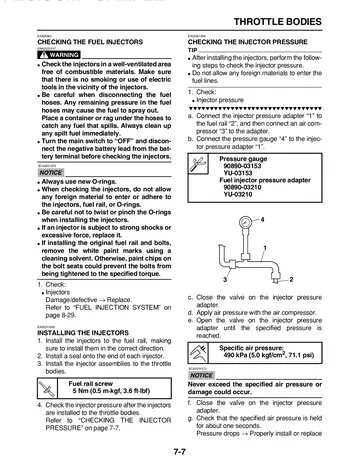

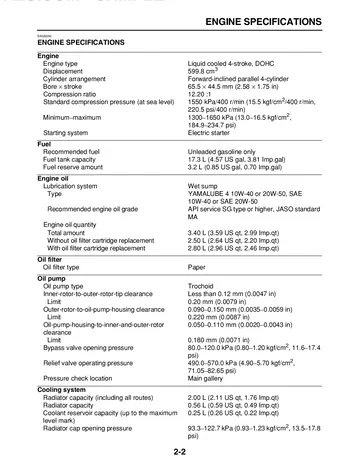

The site taxonomy records the model as FZ6-R, while Yamaha's factory manual styles the name FZ6R and identifies the U.S. and California variants as FZ6RY and FZ6RYC. The engine is a 599.8 cm³ liquid-cooled DOHC inline-four with a 65.5 × 44.5 mm bore and stroke and a 12.2:1 compression ratio. Electronic fuel injection uses four injectors, while a wet multi-disc clutch, six-speed constant-mesh gearbox and chain final drive complete the powertrain. The result is a 599.8 cc fuel-injected inline-four sportbike tuned around accessible street performance rather than supersport-race specifications.

The chassis specification reinforces that everyday-road focus. Factory data lists a diamond frame, 1,440 mm wheelbase, 785 mm seat height and ready-to-ride weight of 212 kg for the standard U.S. version and 213 kg for the California version. The 17.3-liter fuel tank, 17-inch cast wheels and conventional suspension layout place the motorcycle firmly in the practical middleweight class, while its full bodywork gives it a much more aggressive visual identity than an unfaired commuter.

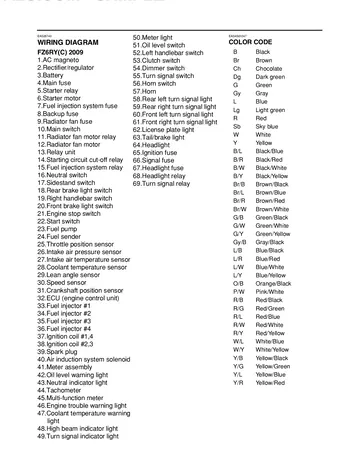

The 2009 service documentation also shows how this model sat within Yamaha's broader middleweight strategy. Yamaha launched the XJ6 Diversion in Europe for the same model year around an “Easy-handling Pleasure Sports Bike” concept, using a 600 cc liquid-cooled fuel-injected inline-four in a diamond frame and targeting entry-level riders and everyday mobility. The final wiring sheets in this FZ6R manual are jointly labeled for FZ6RY(C) 2009 and XJ6N 2009, showing direct documentation overlap between the North American and European middleweight programs. See Yamaha's official 2009 XJ6 Diversion announcement.

For related documentation, browse the FZ6-R category or the broader Yamaha catalog. This listing is based specifically on factory publication LIT-11616-22-77 / 36P-28197-10, titled “2009 Service Manual FZ6RY(C)” and issued as the first edition in December 2008. The 420-page source contains nine service chapters plus 2009 wiring diagrams and no later model-year supplements, so the directly verified catalog applicability is 2009 only.
