Yamaha MT-07A ABS Service Manual (2014)

Yamaha unveiled the MT-07 at the 2013 Tokyo Motor Show and launched the production model in 2014 as the lighter, more accessible twin-cylinder member of the revived MT family. Yamaha positioned it around everyday riding enjoyment rather than outright peak performance: a compact chassis, strong low- and mid-range response, and a design intended to make the motorcycle easy to use in urban riding while still engaging on faster roads. The model followed the MT-09 into Yamaha's new-generation “MT World” and helped establish the company's modern Hyper Naked direction. See Yamaha's official 2013 MT-07 presentation and 2014 launch release.

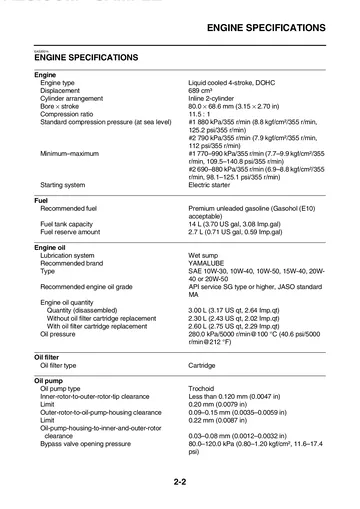

At the center of the platform is a 689 cm³ liquid-cooled parallel twin developed around Yamaha's Crossplane Concept. The engine uses a 270-degree crankshaft to emphasize linear torque delivery and a distinctive firing character, with double overhead camshafts, four valves per cylinder and electronic fuel injection. The factory service specification gives an 80.0 × 68.6 mm bore and stroke and 11.5:1 compression ratio. A wet multi-disc clutch, six-speed constant-mesh gearbox and chain final drive complete the drivetrain, creating a 689 cc CP2 naked bike package focused on usable torque and mechanical simplicity.

The chassis follows the same light-and-compact philosophy. The 2014 ABS version in this publication is listed at 182 kg curb weight, with an 805 mm seat height, 1,400 mm wheelbase, 17-inch cast wheels and a diamond-type frame. Suspension travel is 130 mm at both ends, while braking is handled by twin 282 mm front discs and a 245 mm rear disc. The MT07A designation identifies the ABS-equipped version, and the service book devotes substantial coverage to the anti-lock braking system, wheel sensors, hydraulic unit and self-diagnosis functions.

Yamaha continued to evolve the platform without abandoning its basic character. For 2018, Yamaha announced a refreshed MT-07 with a more mature body design while explicitly retaining the fundamental character of the previous model. A further 2021 update brought another styling revision and emissions-related changes while keeping the same core parallel-twin concept. The broader CP2 platform later became the basis for other Yamaha models, including the XSR700 and YZF-R7, underscoring how important the original MT-07 architecture became within Yamaha's middleweight range. See Yamaha's official 2018 model-range announcement.

For related documentation, browse the Yamaha MT-07 category. This listing is specifically based on factory publication 1XB-28197-E0 for the MT07A 2014 ABS model. The cover identifies 2014, and the publication page states First edition, October 2014. Because the PDF contains no later model-year supplements, its verified catalog applicability is limited to 2014 rather than the legacy 2014-2020 range.
