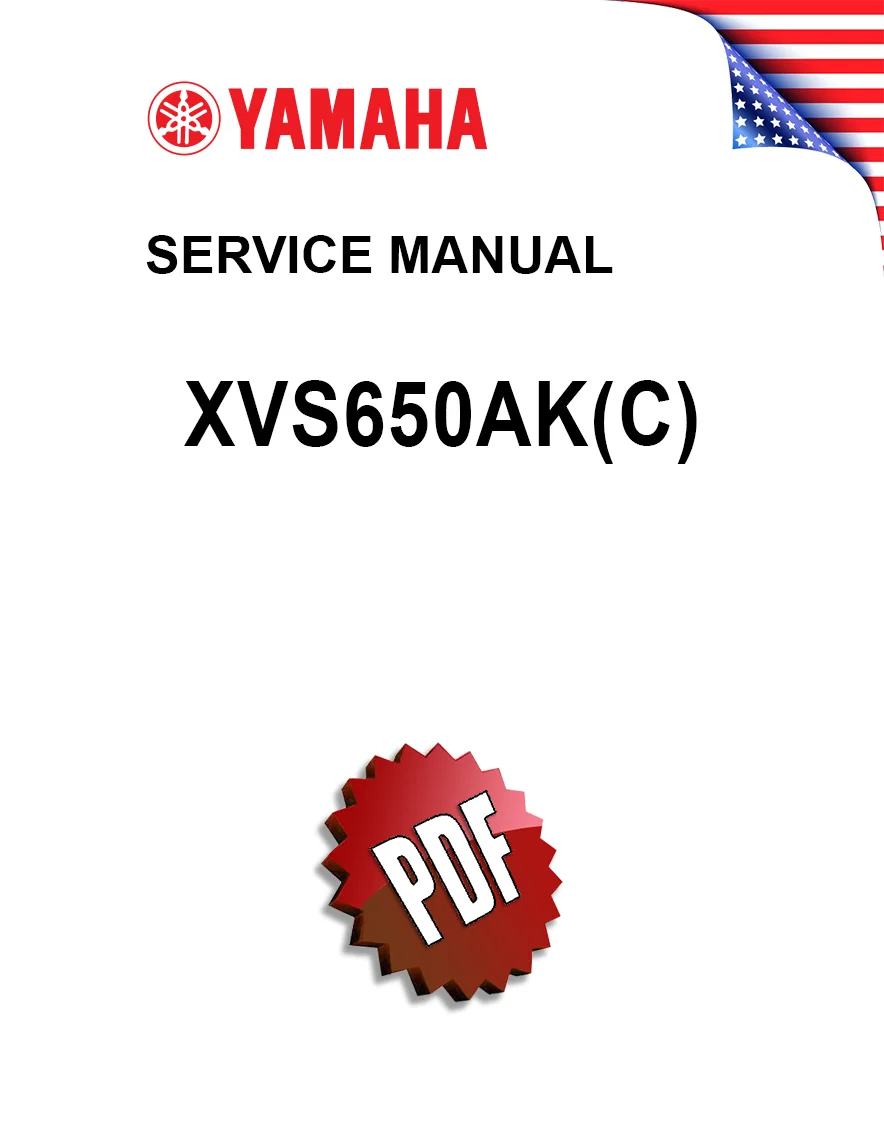

Complete PDF version of the Service Manual for the Yamaha V-Star 650/XVS650. A MUST for every DragStar owner.
Download: Immediately after payment!
OEM Original factory workshop manual.
Models covered by this manual: 1997 to 2019
Number of pages: 360 pages

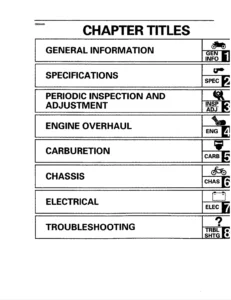

Table of contents:
This PDF repair manual can be downloaded right after the payment process in complete, on the device of your choice. You will also receive the download link by email along with your receipt.
We do not offer printed manuals, for the following reasons:
- it is more eco-friendly to use a digital version
- your manual never gets dirty or greasy
- you can always choose to print the specific page(s) you need to work on your bike
- you receive your manual immediately after payment
- it is searchable
Yamaha V-Star 650
Yamaha Motor Company manufactures the Yamaha DragStar 650 (also known as the V Star 650 and the XVS650/XVS650A).
The cylinders of the XVS650 (called V Star in the United States and Australia) were bored an extra 5 mm to 81 mm and stroked 4 mm more to 63 mm, resulting in a displacement of 649 cc. The XVS650 is available in two models: the Custom, which has a lower seat height of 695 mm (27.4 in) and weighs somewhat less, and the Classic, which has a higher seat height of 708 mm (27.9 in). The Custom weighs roughly 232 kg (511 lb), whereas the Classic weighs approximately 15 kg more (247 kg) (545 lb).
The Yamaha XVS650 is the entry-level model in the V-Star range in the United States. From 1998 until 2008, the Classic and Silverado models were available. Both models are powered by the same 649 cc v-twin engine. The V-Star range combines the aesthetic appeal of bigger v-twin bikes with the fuel efficiency, dependability, and agile handling of a mid-size cruiser.
The V-Star 650 (and even the 1100) are available in three different trim levels:
- V-Star Custom (650) XVS650 – Base model for long-distance sailing. It had plastic front and back fenders and a recessed taillight under the flared rear fender. This model was also available in a Midnight Custom edition with blacked-out detailing. Raven (black metallic) was used to paint the Midnight Custom (XVS65Y-B), as well as black wheel rims and black satin trim throughout. The monochrome color palette was complemented with chrome highlights and pipes.
- Classic V-Star (650) XVS650A – The same frame as the V-star Custom, but with a bigger front wheel, metal fenders, longer bodywork, less chromed styling, dragging handlebars, a broader seat, and a variety of other design variations.
- V-Star Silverado (650) – Similar to the V-Star Classic, but with saddlebags and a few additional touring enhancements.
Some V-Star bikes are available in a deepish purple with flames color scheme. There were two editions of this. The XVS65T-F and XVS65TC-F are two models (CA edition). The CA version is limited to California and has a canister to restrict the release of gasoline vapor into the environment.
This container has three lines. One for the gasoline tank, one for the carburetor, and one for the vent hose. When the VIN is decoded, both of these models will show up as XVS650 or XVS650A, owing to the fact that their parts are almost similar to these two versions with very few exceptions, if any.
All of them are the basic RoadStar models. The terms RoadStar and RoyalStar primarily refer to a class of motorcycles designed and fine-tuned for touring performance.
