Kawasaki Ninja ZX-11 / ZZ-R1100 Service Manual (1993–1997, 1999–2001)

The Kawasaki ZX11, also identified in this factory publication as the ZZ-R1100, is documented here in the ZX1100-D series. The manual's application table begins with ZX1100-D1 for 1993 and continues through D5 for 1997, then resumes with D7 for 1999, D8 for 2000 and D9 for 2001. Kawasaki's official 1993 Ninja ZX-11 Owner Center page independently identifies the first covered model as ZX1100-D1. The uploaded revision does not list a 1998 model application, so this catalog entry follows the factory table rather than assuming continuous year coverage.

The motorcycle uses a 1052 cc carbureted sport-touring inline-four: a liquid-cooled, four-stroke DOHC four-cylinder engine with a 76.0 × 58.0 mm bore and stroke and 11.0:1 compression ratio. Fuel is supplied by four Keihin CVK-D40 carburetors, with electric starting and transistorized battery-and-coil ignition. Factory specifications list up to 108 kW (147 PS) at 10,500 rpm and 110 N·m at 8,500 rpm for applicable markets, with output varying by regional specification.

Drive passes through a wet multi-disc clutch and six-speed constant-mesh return-shift transmission to a chain final drive. The chassis is a tubular double-cradle design with 26.5-degree rake, 107 mm trail and a 1,495 mm wheelbase on the main specification. Suspension consists of a telescopic front fork with 120 mm travel and Uni-Trak rear suspension with 112 mm travel. The bike uses 120/70 ZR17 front and 180/55 ZR17 rear tubeless tires, dual front discs and a single rear disc. Factory figures include a 780 mm seat height, 24 L fuel tank, 233 kg dry mass and 3.5 L engine-oil capacity.

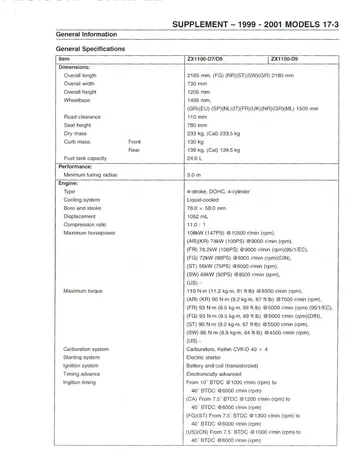

The base manual carries a third-edition revision dated December 21, 1994, while the final chapter is a dedicated “Supplement - 1999 - 2001 Models” for ZX1100-D7/D8/D9. That supplement updates specifications, fuel-system, cooling-system and electrical information for the later models, showing how the factory publication evolved across the D-series. The Model Application page identifies the complete uploaded revision as part number 99924-1159-07. For other generations, browse the Kawasaki Ninja ZX11 manual category.
