Aprilia SR 50 Service Manual (2005)

Aprilia established the SR 50 as one of the defining models in its move into urban two-wheelers. Aprilia's official brand history places the SR50 in 1992, during the period when the company was rapidly expanding beyond off-road and small sport motorcycles. Later Piaggio material describes Aprilia as the first manufacturer to introduce the sport-scooter concept in the 1990s with the SR 50, a formula that combined scooter practicality with aggressive styling and chassis equipment influenced by the company's racing image.

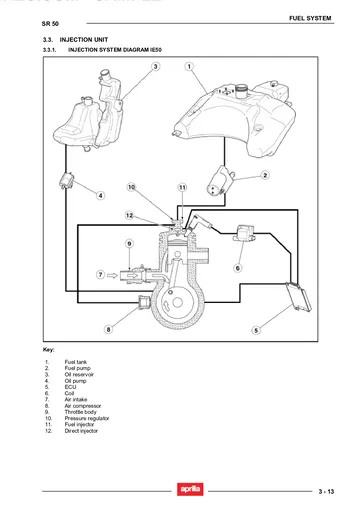

A major technological branch in that lineage came with Aprilia's DiTech programme. The same official history records the arrival in 2000 of Direct Injection Technology, developed to reduce fuel consumption and emissions while preserving two-stroke performance. By the middle of the decade the SR 50 family could therefore encompass several different 49 cm³ powertrains under the same basic sporting-scooter identity. The 2005 workshop specification distinguishes a carburetted C364, an IE361 PureJet version and an IE50 DiTech version, showing how Aprilia used the 50 cc two-stroke sport scooter platform to accommodate both conventional and electronically injected engine technology.

The chassis remained deliberately more sporting than a basic commuter scooter. Factory data lists a split single-beam frame, 13-inch alloy wheels with 130/60-13 tubeless tyres, 190 mm hydraulic disc brakes at both ends, a telescopic fork with 90 mm travel and a rear hydraulic monoshock with 69 mm travel. Seat height is 795 mm and running-order weight 108 kg. Depending on engine configuration, wheelbase is 1,260 or 1,290 mm. A seven-litre fuel tank and automatic centrifugal clutch with stepless CVT retained everyday ease of use while the wheel, tyre and brake package supported the SR's performance-oriented positioning.

Piaggio Group's 2005 financial reporting lists the SR 50 among the Aprilia scooter models that stood out in the range that year, alongside Scarabeo and Sportcity. The SR name then continued through multiple later derivatives rather than disappearing after this generation. Official 2017 range material still described the SR 50 R as Aprilia's ultimate sports scooter, while SR 50 Motard and SR 50 Street broadened the family into supermoto-inspired and more urban interpretations. That continuity reflects the durability of the original idea even as emissions equipment, styling and individual engine specifications evolved.

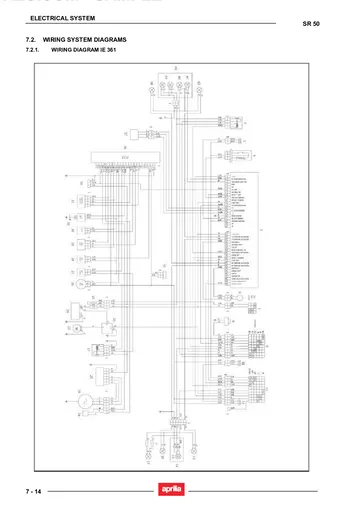

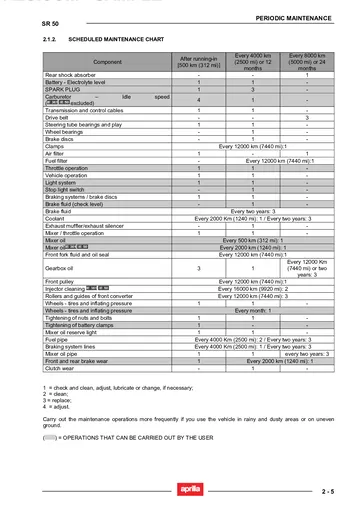

This listing is based specifically on USA workshop publication 8140817, Release 00/2005-05, first edition May 2005. It covers scheduled maintenance, C364 carburettor service, IE361 PureJet and IE50 DiTech fuel systems, engine removal and installation, cooling, cycle parts, brakes, suspension, electrical diagnosis and model-specific wiring diagrams. Detailed internal engine overhaul is referred to separate engine workshop publications. Because this source contains no application table extending into later years, catalog coverage remains restricted to 2005. Related documentation is grouped in the Aprilia SR 50 manual category.
