Buell M2 / M2L Cyclone Service Manual (2002)

Buell introduced the Cyclone for the 1997 model year as a more practical companion to the sharper S1 Lightning. The M2 used the same basic air-cooled 1,203 cc V-twin concept but paired it with a broader seat, more relaxed ergonomics and stronger emphasis on everyday road use. Contemporary Cycle World coverage described the original Cyclone as a “civilian” alternative to the S1, aimed at riders who wanted Buell’s compact chassis and muscular torque delivery without the Lightning’s more uncompromising riding position. See Cycle World’s 1997-model Buell introduction.

The model changed substantially for 1999. Buell revised the frame, bodywork, seat, swingarm and suspension and adopted the higher-flow Thunderstorm cylinder heads while retaining the 40 mm Keihin constant-velocity carburetor. Cycle World’s 1999 road test emphasized how the revised Cyclone combined a broader, stronger powerband with improved comfort and practicality. This second-generation tube-frame M2 kept the 1,203 cc pushrod V-twin, five-speed gearbox and belt final drive but became a more polished air-cooled V-twin sport-standard rather than simply a softened version of the early Lightning.

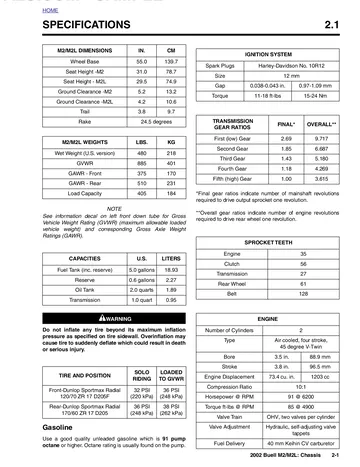

For 2001 Buell added the M2L Cyclone Low. It retained the same engine and basic chassis architecture but used a lower seat and reduced suspension height to make the motorcycle easier to manage at a stop. Cycle World introduced the M2 Low as a new 2001 variant intended for shorter or newer riders, with a seat roughly two inches lower than the standard M2. The factory service data for 2002 gives a 787 mm seat height for the standard M2 and 749 mm for the M2L, with corresponding ground clearances of 132 mm and 106 mm.

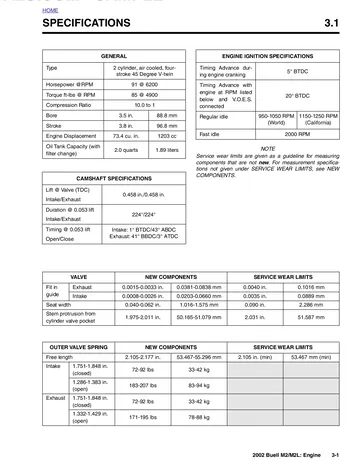

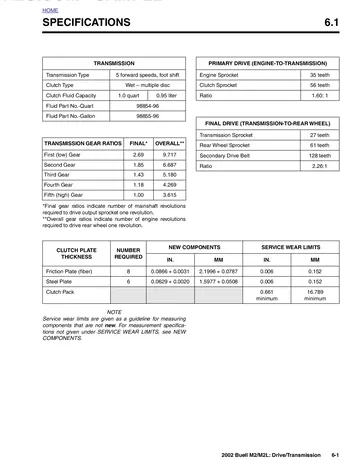

By 2002 the Cyclone had reached the end of its tube-frame production run. Both versions used the 1,203 cc 45-degree V-twin with an 88.9 mm bore, approximately 96.5-96.8 mm stroke, 10:1 compression and hydraulic self-adjusting tappets. Factory specifications list 91 hp at 6,200 rpm and 85 lb-ft at 4,900 rpm, a 40 mm Keihin CV carburetor, five-speed transmission and 128-tooth belt final drive. The chassis retained a 1,397 mm wheelbase, 17-inch radial tyres and fully hydraulic disc brakes. Harley-Davidson’s official 2002 Cyclone parts catalog identifies KS as Cyclone M2 and LS as Cyclone M2L and lists model-year code 2 for 2002: 2002 Cyclone M2/M2L parts catalog.

This factory publication is specifically the 2002 M2/M2L service manual, part 99491-02Y. Its cover and VIN section identify the 2002 model year, and Harley-Davidson’s service-publication index separately lists 99491-02Y as the 2002 M2/M2L manual; no 2003 M2/M2L service manual is listed. Related publications are grouped in the Buell Cyclone service manual catalog.
