Kawasaki Ninja ZX9R

Kawasaki Ninja ZX9R C (2nd gen.) Repair Manual

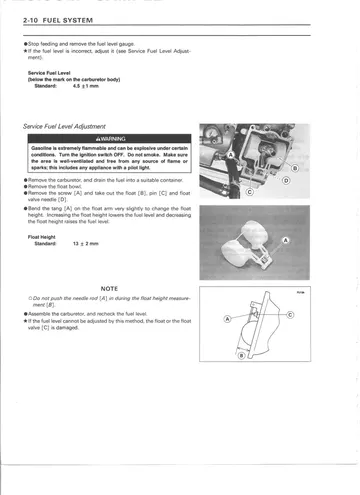

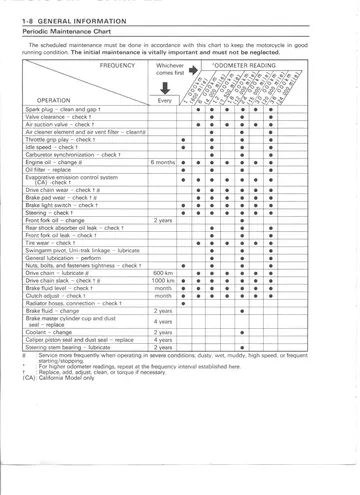

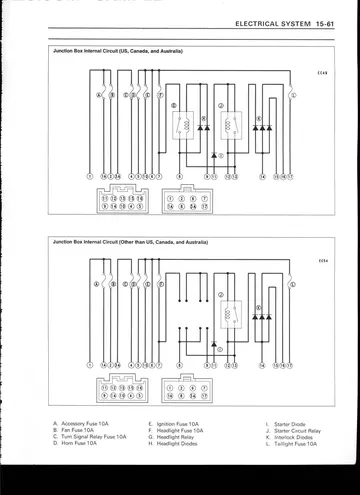

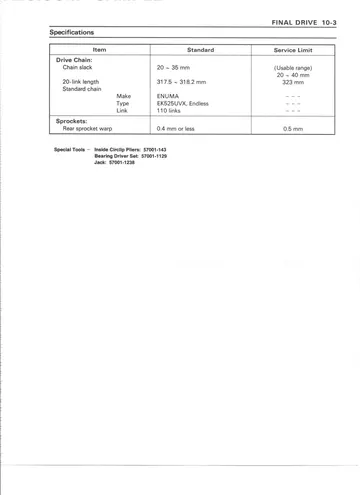

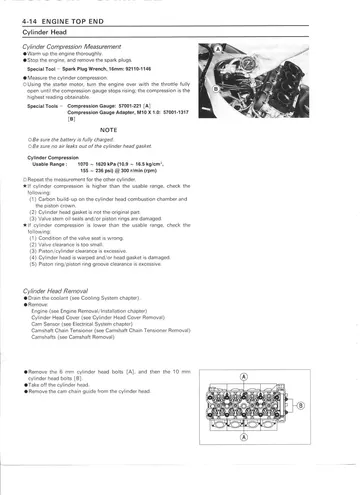

Complete PDF version of the Service Manual for the Kawasaki Ninja ZX9R C. A MUST for every Ninja ZX9R owner.

Download: Immediately after payment!

OEM Original factory workshop manual.

Models covered by this manual: 1998 to 1999

Number of pages: 307 pages

Table of contents:

Kawasaki Ninja ZX9R

This PDF repair manual can be downloaded right after the payment process in complete, on the device of your choice.

We do not offer printed manuals, for the following reasons:

  1. it is more eco-friendly to use a digital version
  2. your manual never gets dirty or greasy
  3. you can always choose to print the specific page(s) you need to work on your bike
  4. you receive your manual immediately after payment
  5. it is searchable



Paypal Secure checkout


Kawasaki Ninja ZX9R

In reaction to Honda’s release of the CBR900RR Fireblade for the 1992 model year, Kawasaki created the model. Large-capacity Japanese sporting bikes had been polarized before to the introduction of the Fireblade. On one side, there were the 750cc sport bikes, which were influenced by Endurance racing and the World Superbike Championship. On the other hand, the “big-bore” 1,000 cc-plus sports-tourers had evolved naturally from the performance bikes of the previous 20 years. In a nutshell, the 750s had the handling, while the big-bores had the power. Kawasaki dominated in both categories.

The ZXR750 offered the technology and performance of ultra-expensive racing-homologation models from Honda and Yamaha for half the price, and it outperformed the similarly priced GSX-R750 of the time, which still featured a perimeter frame and an oil-cooled engine, while the ZZ-R1100 was the fastest production motorcycle on the planet.

The Fireblade was built around a 900cc engine and a 750cc sport bike frame. It blended big-bore power with sport bike maneuverability, but more importantly, it was the first to pay close attention to weight-saving design. The Fireblade not only outperformed the 750s in terms of power, but it was also substantially lighter. When Kawasaki set out to construct their Fireblade-beater, they ignored or underrated this feature. Rather than commit to an altogether new design, Kawasaki blended their class-leading big-bore, the ZZR1100, with their class-leading 750, the ZXR750, to create the first ZX-9R.

The result was a large motorbike; despite weight-saving techniques like as magnesium engine covers, its claimed dry weight was 215 kg (474 lb), over 30 kg (66 lb) more than the Fireblade. It produced roughly 125 horsepower (93 kW), which was between 10 and 15 hp (11 kW) more than the Fireblade, but this power advantage did not compensate for its size, weight, and inferior agility. Instead of being a direct competition, the ZX-9R was kept as a more stable and pleasant alternative to the Honda, with higher straight-line speed. The higher clipons and more upright sitting placements indicate a road-going orientation.
