Suzuki GS1150 / GSX1100 E / ES / EF Service Manual (1984-1986)

Suzuki developed the 1984 GSX1100E generation as an evolution of its established large-capacity GS/GSX four-cylinder line. Suzuki's official digital archive traces the earlier GSX1100E back to 1980, when it replaced the GS1000 and introduced a DOHC four-valve-per-cylinder engine with Twin Swirl Combustion Chambers (TSCC). The factory publication used here describes the later GSX1100E as a new generation of the GS series, adding fully adjustable suspension and full-transistorized ignition while retaining the TSCC combustion concept. See Suzuki's official GS1000 / GSX1100E archive.

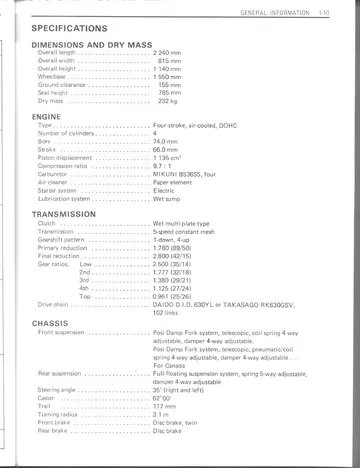

The 1984-1986 family represented by the GSX 1100 and North American/Canadian GS 1150 uses a 1,135 cm³ air-cooled DOHC inline-four with a 74 × 66 mm bore and stroke and a 9.7:1 compression ratio. Four Mikuni BS36SS carburetors feed the engine, while a wet multi-plate clutch and five-speed constant-mesh transmission send power through a chain final drive. Compared with Suzuki's official 1980 GSX1100E specification of 1,074 cm³ and a 72 × 66 mm bore and stroke, the later engine achieved its extra capacity mainly through a larger bore while retaining the same stroke. That makes this generation a distinctive air-cooled 1135 cc DOHC performance motorcycle within Suzuki's pre-GSX-R large-bike lineage.

The chassis specification combined a 1,550 mm wheelbase with Suzuki's Posi Damp adjustable telescopic fork and Full-Floater rear suspension. Twin front disc brakes and a rear disc matched the performance focus, while the E, ES and EF versions used different bodywork and cowling arrangements around the same core engine and chassis. The manual's dedicated GSX1100ES/EF section documents the fairing-related differences, suspension settings, cable routing and model-specific service data rather than treating those variants as separate mechanical platforms.

Suzuki carried the family through F-model updates for 1985 and G-model updates for 1986, both of which receive dedicated service-data sections in this publication. The wider Suzuki performance range changed direction sharply in 1986 with the introduction of the GSX-R1100. Suzuki's official archive describes that machine as the 1,100 cm³ flagship built around an oil-cooled engine and a much lighter high-rigidity frame, establishing a clear generational break from the heavier air-cooled GSX1100/GS1150 architecture. See Suzuki's official GSX-R1100 history.

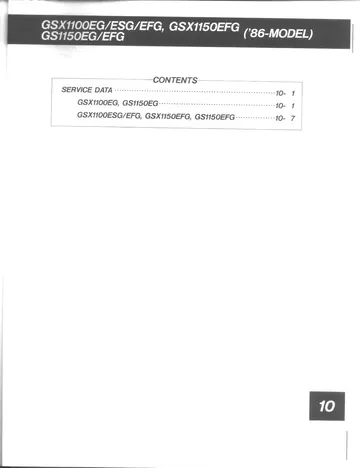

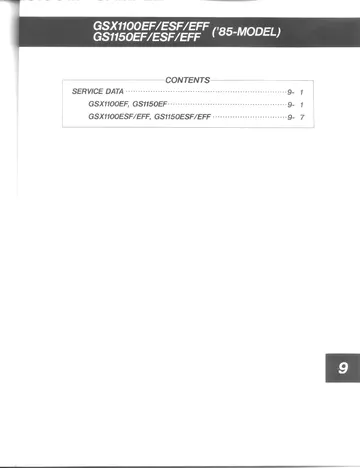

For related documentation, browse the Suzuki GS 1150 category or the broader Suzuki catalog. This 306-page factory service manual, publication 99500-39032-01E, starts with the GSX1100E/ES/EF base service information and then adds GSX1100ES/EF (GS1150EF) differences, a dedicated '85-model section and a dedicated '86-model section. Those source sections directly support catalog applicability for 1984, 1985 and 1986.
