Suzuki GSX-R1000 Service Manual (2007)

Suzuki substantially revised the GSX-R1000 for 2007, increasing engine performance while adding more rider-adjustable electronics. Suzuki's official GSX-R1000 digital archive identifies the 2007 model as a new generation with a higher-revving 999 cm³ engine, Suzuki Drive Mode Selector and a newly designed cast-aluminum frame. The redesign kept the GSX-R1000 in Suzuki's liter-class supersport line while expanding both performance and rider control.

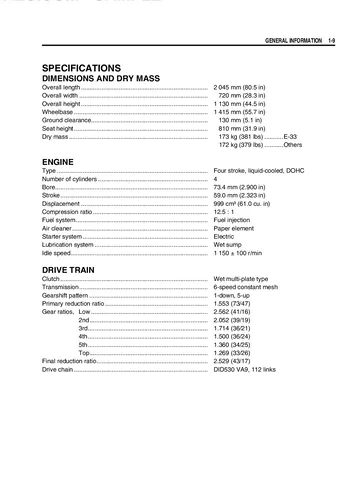

The GSX-R1000 uses a 999 cm³ liquid-cooled DOHC inline-four with a 73.4 × 59.0 mm bore and stroke and a 12.5:1 compression ratio. The factory service specification lists electronic fuel injection, a wet multi-plate clutch and six-speed constant-mesh transmission, with chain final drive using a 43/17 reduction ratio. Suzuki's official archive notes twin multi-hole injectors, iridium spark plugs, enlarged intake and exhaust ports and revised crankcase ventilation as part of the 2007 engine development.

The K7 chassis uses a 1,415 mm wheelbase, 810 mm seat height and factory-listed dry mass of 172 kg for most markets, or 173 kg for California. Fully adjustable inverted front suspension and link-type rear suspension are combined with twin front discs and a single rear disc. The newly designed frame uses cast components welded into a rigid assembly, while three-way adjustable footpegs allow the riding position to be tailored. These features define the K7 as a 999cc fuel-injected superbike focused on high-rpm performance, chassis precision and rider adjustability.

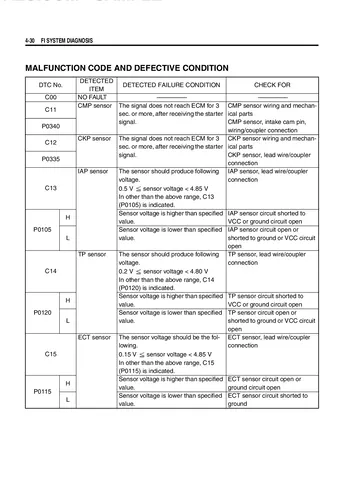

A major electronic addition for 2007 was Suzuki Drive Mode Selector, allowing the rider to select different engine-response characteristics. The factory service publication also covers secondary-throttle control, ECM self-diagnosis, exhaust control, charging and starting systems, steering-damper electronics and market-specific wiring diagrams. Suzuki's archive places this generation between the highly successful 2005 model and the shorter-stroke K9 redesign introduced for 2009.

This listing is specifically for the 549-page GSX-R1000K7 factory service manual covering the 2007 model year. The publication contains no K8 supplementary section, so verified applicability is 2007 only. Related factory publications are organized in the Suzuki GSX-R1000 manual catalog.
