Suzuki GSX-R1000 Service Manual (2009)

Suzuki redesigned the GSX-R1000 for 2009 around its long-standing supersport priorities of acceleration, cornering and braking performance. Suzuki's official GSX-R1000 digital archive describes the K9 as a newly developed model created under the company's fundamental 'Run, Turn, and Stop' philosophy. The redesign introduced a shorter-stroke engine, a revised frame and major braking changes while keeping the motorcycle within the established liter-class GSX-R lineage.

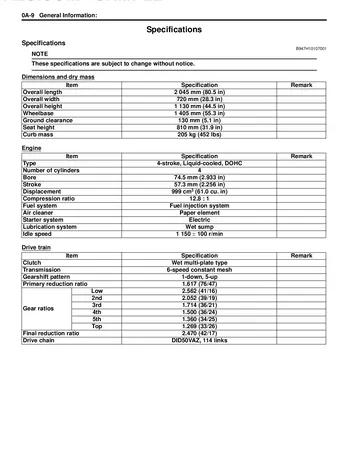

The GSX-R1000 uses a 999 cm³ liquid-cooled DOHC inline-four with a 74.5 × 57.3 mm bore and stroke and a 12.8:1 compression ratio. Compared with the preceding generation, Suzuki increased bore and shortened stroke to reduce piston speed and improve high-rpm tuning potential. The factory service specification lists electronic fuel injection, a wet multi-plate clutch and a six-speed constant-mesh transmission, with chain final drive using a 42/17 reduction ratio.

The chassis was redesigned around a 1,405 mm wheelbase, 10 mm shorter than the 2007 model, while the swingarm was lengthened by 32 mm to improve traction and cornering behavior. Factory specifications list an 810 mm seat height and 205 kg curb mass. Suzuki also adopted lighter, more rigid monoblock front brake calipers. Together these changes define the K9 as a 999cc fuel-injected superbike focused on compact dimensions, high engine speed and improved braking and chassis response.

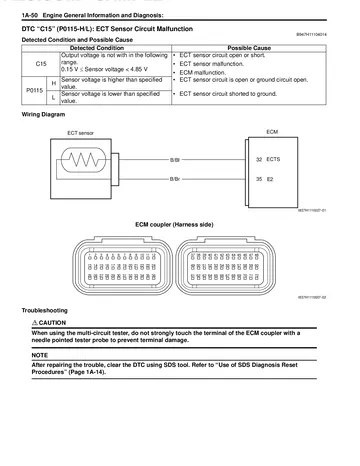

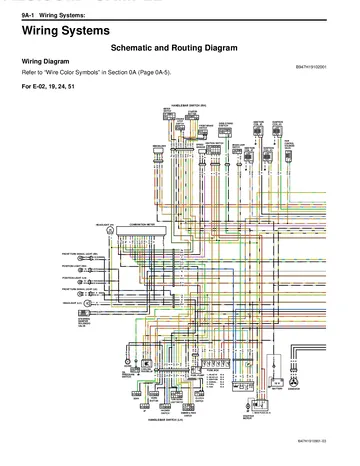

Electronic systems are central to the 2009 platform. The factory publication covers primary and secondary fuel injectors, secondary-throttle control, Suzuki Drive Mode Selector, ECM self-diagnosis, multiple sensor circuits, exhaust control, charging and starting systems, steering-damper control and market-specific wiring diagrams. The K9 therefore represents a distinct technical generation between the 2007 redesign and the later 2017 GSX-R1000/R generation documented in Suzuki's official archive.

This listing is specifically for the 641-page GSX-R1000 K9 factory service manual covering the 2009 model year. Although the current catalog entry extends through 2011, this publication contains no L0 or L1 supplementary model sections, so verified applicability is 2009 only. Related factory publications are organized in the Suzuki GSX-R1000 manual catalog.
