Motorcycle brakes are a critical component of rider safety and performance. Over the years, these braking systems have undergone significant advancements, enhancing both stopping power and rider confidence. In this post, we’ll explore how motorcycle brakes work, the improvements that have occurred, and what we can expect from the next generations of braking technology.

How Motorcycle Brakes Work

Motorcycle braking systems have two primary components: the brake lever (or pedal) and the braking mechanism. These systems typically utilize hydraulic force to transfer power from the rider’s input to the braking action at the wheel.

1. Brake Lever or Pedal

When the rider squeezes the brake lever (on the handlebar) or presses the brake pedal (on the footrest), they apply force to a master cylinder.

2. Master Cylinder

The master cylinder converts the rider’s mechanical force into hydraulic pressure. Inside the master cylinder, a piston is pushed by the lever or pedal, forcing hydraulic fluid (brake fluid) through a series of hydraulic lines.

3. Hydraulic Lines

The brake fluid travels through hydraulic lines, maintaining its pressure and delivering it to the brake calipers.

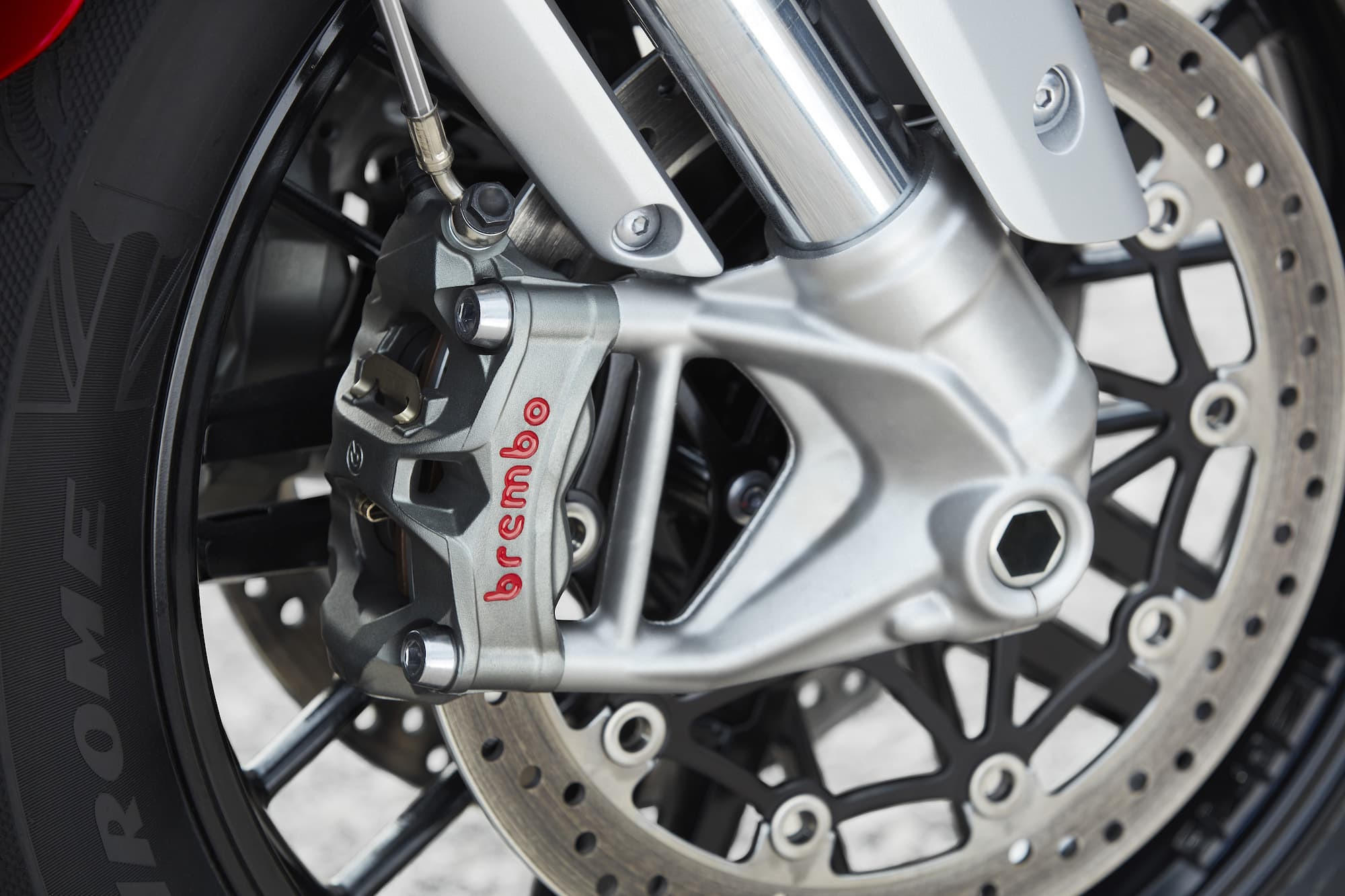

4. Brake Calipers

Brake calipers contain one or more pistons that are actuated by the hydraulic pressure from the brake fluid. These pistons push brake pads against the brake rotor (disc) or brake drum, creating friction and slowing down the wheel.

5. Friction and Heat

The contact between the brake pads and the rotor or drum generates friction, which converts kinetic energy into heat energy, ultimately slowing down the motorcycle.

Improvements Over the Years

1. Disc Brakes vs. Drum Brakes

Disc brakes offer superior stopping power and heat dissipation compared to drum brakes. Most modern motorcycles are equipped with disc brakes on both the front and rear wheels.

2. Dual Disc Brakes

Many high-performance motorcycles feature dual disc brakes on the front wheel, providing exceptional stopping power and improved control during emergency stops.

3. ABS (Anti-Lock Braking System)

ABS has become a standard feature on many motorcycles. It prevents wheel lock-up during hard braking, reducing the risk of skidding and loss of control. ABS has significantly improved safety, especially in adverse road conditions.

4. Linked Braking Systems

Some motorcycles incorporate linked braking systems, where applying the front brake lever also activates a portion of the rear brake. This system enhances stability during braking.

5. Radial Master Cylinders

Radial master cylinders offer better leverage and control, allowing riders to modulate braking force more precisely.

Future of Motorcycle Brakes

As motorcycle technology continues to advance, we can expect further innovations in braking systems:

1. Enhanced ABS

The future of ABS systems will prioritize further enhancements in adaptability and performance. Manufacturers are likely to invest in research and development to make ABS systems even more intelligent and responsive to various riding conditions.

• Adaptive ABS: Future ABS systems will become increasingly adaptive, considering factors like lean angle, road surface conditions, and tire grip. This will allow ABS to fine-tune braking force for optimal performance in a wide range of scenarios, from dry asphalt to wet or slippery surfaces.

• Customizable Profiles: Riders may have the ability to customize ABS profiles to suit their riding style. For instance, they could select sporty profiles for aggressive riding or touring profiles for long-distance cruising, tailoring the braking behavior to their preferences.

2. Brake-by-Wire Technology

Brake-by-wire technology will see significant advancements in the coming years. This technology replaces traditional mechanical connections with electronic controls, providing precise and customizable braking experiences.

• Customizable Brake Feel: Riders will have the ability to adjust their brake feel electronically. This feature will allow riders to fine-tune the sensitivity of the brakes to match their preferences, whether they prefer a soft initial bite or a more immediate response.

• Regenerative Braking: For electric motorcycles, brake-by-wire systems will incorporate regenerative braking. This technology will capture kinetic energy during deceleration and convert it into electrical energy, increasing the motorcycle’s overall efficiency and range.

3. Advanced Materials

The use of advanced materials in motorcycle brake components will continue to evolve, offering several benefits:

• Carbon-Ceramic Rotors: Carbon-ceramic rotors will become more common due to their lightweight properties and resistance to heat-induced brake fade. These rotors will significantly improve braking performance, especially during intense riding.

• Lightweight Calipers: Brake calipers will incorporate advanced lightweight materials to reduce unsprung weight. Lighter calipers enhance suspension responsiveness and improve overall handling and performance.

4. Smart Brakes

Smart braking systems will incorporate an array of sensors and artificial intelligence to make riding safer and more intuitive:

• Predictive Analytics: These systems will use predictive analytics to anticipate potential collision risks and automatically apply braking force, reducing the likelihood of accidents. This will be particularly valuable in congested traffic and unpredictable road conditions.

• Hazard Detection: Smart brakes will identify road hazards, such as debris, potholes, or slippery surfaces, and adapt braking strategies to avoid or mitigate these obstacles.

5. Integrated Braking and Stability Control

Integration of braking with motorcycle stability control systems will offer comprehensive control over the bike’s dynamics, optimizing both braking and traction management:

• Coordinated Control: These integrated systems will coordinate braking force with traction control and other stability measures to enhance safety and control, especially during abrupt maneuvers.

• Enhanced Safety: The seamless coordination of braking and stability control will prevent skidding and loss of control, making motorcycles even safer and more accessible to riders of varying skill levels.

In conclusion, motorcycle brakes have evolved significantly, from basic drum brakes to advanced ABS and linked systems. The future promises even greater enhancements in safety, control, and performance through innovations like smart brakes, advanced materials, and integrated control systems. These developments will undoubtedly contribute to safer and more enjoyable riding experiences for motorcyclists of all levels.
