Honda CBR 600RR rear brake

How to Rebuild a Honda CBR600 Rear Brake Caliper

Table of Contents

    The process involves extracting the brake fluid out of the system, removing the caliper, cleaning the piston, rebuilding the caliper and refilling the reservoir. Follow the steps below to rebuild the rear brake caliper for a Honda CBR600 motorcycle.

    Tools and Parts Needed – Honda CBR 600 Rear Caliper Rebuild


    • 6mm Allen
    • 32mm socket
    • Breaker bar
    • Torque wrench
    • 8mm, 10mm and 12mm crescent wrench
    • Angled and standard Phillips
    • Set of pick tools
    • Honda CBR600 Service Manual


    Extracting Honda CBR 600 Brake Fluid

    Step 1.

    Remove rear brake fluid reservoir cap.

    Step 2.

    Attach the vacuum fluid extractor air hose to the rear caliper valve and turn it on.

    Honda CBR600 rear brake caliper bleed

    NOTE: The 8mm wrench is all you need to open and close the valve.

    Step 3.

    Once the majority of the brake fluid is out, close the valve and remove the vacuum air hose.

    Removing Honda CBR 600 Rear Caliper

    Step 4.

    Loosen the banjo bolt securing the brake line so that the line can be removed from the caliper.

    Honda CBR600 motorcycle rear brake caliper rebuild

    NOTE: Don’t lose either of the crush washers on the banjo bolt.

    Step 5.

    Remove the hanger pin holding the brake pads in place, followed by the pads themselves and the pivot pin.

    Honda CBR600 brake pads caliper

    Step 6.

    Using a lift stand, loosen the rear axle and pinch bolts to push the tire forward, allowing the chain to come off.

    Honda CBR600RR brake caliper rebuild

    NOTE: Once the tire is out of the way, the rear caliper will fall off as well.

    Step 7.

    Remove the piston from the caliper.

    Honda motorcycle brake caliper rebuild

    NOTE: The compressed air or air gun is the best way to do this. Be cautious, as too much pressure will cause it to fire out like a cannon.

    Step 8.

    Inspect the piston and look for pit marks.

    Step 9.

    Remove both the inner and outer seal from the caliper.

    Honda CBR600 brake caliper seal removal

    PRO TIP: The pick tool comes in handy here.

    Step 10.

    Clean out the caliper with brake fluid and towel dry it.

    Step 11.

    Insert the new piston seals, with the larger seal at the bottom and the smaller one on the top.

    Step 12.

    Pour a dash of DOT-4 brake fluid into the bore and rub some on the piston itself, then drop the piston into the bore.

    Step 13.

    Align the caliper back onto the bike with the pivot pin and secure it.

    Step 14.

    Attach the upper brake line to the rear caliper. Both the upper and lower crush washers must be secured to the line.

    Honda CBR600RR rear brake caliper rebuild

    Step 15.

    Align the rear wheel and chain with the axle and secure the brake hose back into place.

    Step 16.

    Place the brake pads back into the caliper and secure the brake pad pin. Torque the pin to 13 foot-pounds.

    Honda CBR600 brake pads pins

    Step 17.

    Readjust the chain tension.

    Step 18.

    Refill and bleed the brake fluid and you’re done.

    Source: Partzilla

    Be well and ride safe!

    VIN Motorcycle

    How to check the VIN of your motorcycle

    Your motorcycle’s Vehicle Identification Number, or VIN, is a 17-character identification that belongs to the vehicle’s history. The VIN contains data about the manufacturer, model year, and production location. The VIN is your motorbike’s identifying number in many ways.

    Vehicle identification numbers (VINs) can be found on vehicle registrations, titles, and even insurance cards. When purchasing parts, using the VIN is a sure way to acquire exactly what you need, and a sales agent will commonly ask for it.

    Furthermore, whether you’re selling or buying a used motorcycle, the VIN tells you or a potential buyer whether the bike has been in an accident, rebuilt, or even stolen, among other things.

    The VIN seems to be one long string of letters and numbers, but it is really divided into three sections: the first three characters, the next six (spots four through nine), and the last eight.

    check VIN

    The first three letters comprise the World Manufacturer Identifier. The first character represents the country code. The USA is represented by the letter “1” or “4”, Canada by the letter “2,” England by the letter “S,” and Germany by the letter “W.” The manufacturer is represented by the second digit. Kawasaki, for example, gets the letter “K,” Honda gets the letter “H,” and Suzuki gets the letter “S.” The vehicle is identified by the third character. Motorcycles are often designated with a “1” or a “A.”

    The Vehicle Description Section is made up of the six characters listed below, and it describes the manufacturer’s vehicle features. Characters four through nine vary depending on the manufacturer, but they always include engine size, engine type, and even model information. The ninth digit serves as an accuracy check, ensuring that the preceding characters were approved by the manufacturer. The tenth digit represents a year code, while the eleventh digit represents a factory code.

    The last eight characters of the Vehicle Identifier Section indicate the year and location of manufacture, as well as the serial number.

    The digits 0 through 9 and letters A to Z are used, with the exception of I, O, and Q, which are used to avoid confusion with the numerals 1 and 0. There are no additional characters used than letters and numerals.

    For just $14.95, you may get a VIN checked from, which is important for prior accident histories.

    Your report will include the following:

    • Accident History
    • Lease & Taxi Use
    • Title Information
    • Hidden Damage
    • Liens
    • Junk & Salvage
    • Mileage Rollback
    • Manufacture’s Recall History
    • Sale Records
    • Lemon Check
    • Theft & Recovery
    • Owner History

    The VIN is usually located on the steering neck of motorcycles and dirt bikes, but it may also be found on the motor around the bottom of the cylinders. Turn the handlebars to the left and look at the right side of the frame where the steering head is located. The inscription is engraved vertically on the metal.

    Ride safe.


    Kawasaki Versys 650 Mk3 Maintenance Schedule

    Table of Contents

      From 2015 to the present, this is the maintenance plan with corresponding service intervals for the Kawasaki Versys 650 Mk3.

      The Versys 650 has seen a few major improvements during its lifetime, but the engine and basic design have remained substantially the same (though a few parts have changed).

      • Mk1 2007-2009: The original! A well-received bike, just thought of as a little buzzy.
      • Mk2 2010-2014: Updated fairing (still a stacked headlight), rubber engine mounts and foot-pegs to reduce vibration. Optional (standard in some markets) ABS and heated grips.

      Parts and maintenance for the Gen 1 and Gen 2 are quite similar. You can find the Versys 650 Mk1 and the Versys 650 Mk2 maintenance schedules in their respective service manuals on sale here.

      • Gen 3 2015+: Re-tuned engine for 3 more kW (5 more hp), new look (twin headlights) with adjustable windscreen, updated front Showa suspension and rear KYB shock with remote pre-load adjuster, standard ABS, updated front Nissin brakes and 30mm larger rear disc

      In the United States, the 2015 model is also available as an LT (“Light Touring”) variant, with hand guards and large side baggage that can fit a helmet in each case.

      All variants of the Kawasaki Versys 650 have featured a fuel-injected 649cc parallel twin from its stablemate the Ninja 650 at its heart, producing a modest 50 kW (70hp) not too far up in the rpm range. It has enough power to keep you hustling at highway speeds (far into the double digits with plenty of power for passing — but you may need to downshift if you’re carrying a passenger).

      The Kawasaki Versys 650 is only offered in select areas as a low-power learner-compliant model. The maintenance for these versions is same.

      What you need to service the Kawasaki Versys 650

      The following consumables and components are required for servicing the Kawasaki Versys 650.

      Versys 650 owners are very serious home maintenance types, but if you’re lacking in basic tools, take a look at our list of maintenance items to see what more you could need. has these components at a very reasonable price.

      PartKawasaki Versys 650 Spec
      OilYou need 1.6-1.8L of SAE 10W-40 engine oil “with API SG, SH, SJ, SL or SM with JASO MA, MA1 or MA2 rating”, preferably Kawasaki 10W-40 Engine Oil.

      Don’t over-torque the drain bolt (spec is 30 Nm/22 lb-ft per the manual) — use a torque wrench if you don’t have experience with how much torque is enough.
      Oil filterOil filter is part 16097-0008, or you can use Hiflofiltro HF303RC. Torque for oil filter is 17.5 Nm (12.9 ft-lb) (use a torque wrench, and it’s easier on the K&N one)
      Front brake padsGet double-sintered EBC brake pads for better bite and wear. You need FA142HH (get 2 pairs).
      Rear brake padsGet double-sintered EBC brake pads for better bite and wear. You need a different part for year 2015 only.
      Year 2015 (only): FA140HH
      Years 2016+: FA174HH
      Spark plugsNGK CR9EIA-9, with a spark plug gap of 0.8-0.9mm (use a spark plug gapping tool), torqued to 15 Nm or 11 ft-lb (use a torque wrench)
      Air filterUse the K&N drop-in equivalent. The part number is KA-6415.
      Cable lubricantRemember to lubricate your clutch cable (and brake cables if you have them) with a cable lubricant. Protect All Cable Life is a good general-purpose lubricant.
      Chain lubricantThe chain needs to be lubricated every 600 km/400 miles (or more, if it gets wet/dirty). Motul chain paste is cheap and well-loved.
      Brake fluidSpec is to use DOT-4 brake fluid.
      CoolantUse nitrate-free, phosphate-free, ethylene glycol-based coolant with anti-corrosion inhibitors, e.g. Valvoline Zerex G05
      GreaseUse a lithium soap-based grease for all the important greasing points.
      Consumables for servicing the Kawasaki Versys 650 motorcycle

      Maintenance Schedule for Kawasaki Versys 650

      The maintenance plan for the Kawasaki Versys 650 from 2015 onwards is shown below. It has been simplified for exhibition purposes and to remove extraneous complexity. While the fundamental motorbike remained same from 2015 to 2018, the maintenance plan became much easier to follow beginning in 2018. That format is followed by the table below.

      It has the same basic material as the previous model Versys 650, with only a few intervals modified.

      The list of maintenance procedures must be performed on this motorbike is as follows, with a time or distance interval — whichever comes first.

      • For higher odometer readings, repeat at the frequency interval established here.
      • (*C) Service these items (oil, air filter, chain etc.) more frequently when operating in severe conditions: dusty, wet, muddy, high speed, or frequent starting/stopping.
      km x 1000112243648
      mi x 10000.67.615.222.830.4
      Air cleaner element (*C) (Part KA-6415)
      (Note: earlier schedules recommended every 18K km)
      Idle speedIIIII
      Throttle control system (smooth return)IIIIIYear, I
      Engine vacuum synchronization IIII
      Fuel systemIIIIIYear, I
      Fuel filter
      (Note: Not mentioned in some earlier schedules)
        R R
      Fuel hoses     5 years, R
      Evaporative emission control system (CA only)  I I
      Coolant levelIIIII
      Cooling systemIIIIIYear, I
      Coolant, water hoses, and O-rings (Coolant: Honda Coolant, it’s high-quality)   R 3 years, R
      Valve clearance  I I
      Air suction system IIII
      Clutch operation (play, engagement, disengagement)IIIII
      Engine oil (*C) and oil filter (Kawasaki 10W-40, HF303RC)RRRRRYear, R
      Tire air pressure IIIIYear, I
      Wheels and tires IIIIYear, I
      Wheel bearing damage IIIIYear, I
      Drive chain lubrication condition (*C) (Motul chain paste)     Every 600 km (400 mi), I
      Drive chain slack (*C)     Every 1000 km (600 mi), I
      Drive chain wear (*C) IIII
      Drive chain guide wear IIII
      Brake systemIIIIIYear, I
      Brake operation (effectiveness, play, no drag)IIIIIYear, I
      Brake fluid levelIIIII1/2 year, I
      Brake fluid (front and rear) (Castrol DOT 4)  R RR,2
      Brake hose     R,4
      Rubber parts of brake master cylinder and caliper    RR,4
      Brake pad wear (*C) IIIIYear, I
      Brake light switch operationIIIIIYear, I
      Suspension system IIIIYear, I
      Steering playIIIIIYear, I
      Steering stem bearings  L L2 years, L
      Electrical system IIIIYear, I
      Spark plug (CR9EIA-9) RRRR
      Chassis parts LLLLYear, L
      Condition of bolts, nuts, and fastenersIIIII
      Versys 650 (2015+) Maintenance schedule table

      Tyre size and tyre pressure for the Kawasaki Versys 650

      The Kawasaki Versys 650 has the following tyres, tyre sizes, and pressures.

      TyreSizeTyre pressure
      Front120/70 ZR17 M/C (58W)225 kPa/32psi
      Rear160/60 ZR17 M/C (69W)250 kPa/36psi
      Tyre sizes and tyre pressures for the Versys 650 (2015+)

      The tyres that came with the Versys 650 in 2015 and later are Dunlop D222, however other sport-touring tyres would work just as well.

      Manual for the Kawasaki Versys 650 (2015+)

      The above maintenance table comes from the 2021 Kawasaki Versys 650.

      It has the same essential features as the 2015 model, but the schedule has been increased to 48,000 km. Despite having the same parts, some goods require more or less service.


      • The 2015 Versys 650 required the air cleaner to be changed every 18,000 km (11.4K miles). The 2021 Versys 650 recommends changing the filter more often, at 12,000 km (7.6K miles)
      • The 2021 Versys 650’s schedule recommends changing the fuel filter every 24,000 km. The 2015’s schedule doesn’t mention it.

      In conclusion, changing the air filter more or less frequently isn’t going to hurt, but replacing the fuel filter is an excellent addition to the timetable.

      2015 Versys 650 Maintenance table
      2015 Versys 650 Maintenance table
      2021 Versys 650 Maintenance table

      The above maintenance schedule comes directly from the user’s manual for the 2021 Kawasaki Versys 650, which is available here.


      Hayabusa Repair Manual PDF

      Hayabusa Repair Manual PDF

      Table of Contents

        There are a few different alternatives for servicing your Suzuki Hayabusa GSX-R 1300R. Bring it to an official Suzuki workshop and pay the expensive fee, or bring it to a generic workshop and risk not knowing anything about your Hayabusa or the model, or fix it yourself.

        Personally, I favor the later choice because it is the least expensive and allows me to learn more about my bike each time. However, we are not all born technicians, and a little outside assistance is always appreciated when it comes to maintenance your motorbike.

        There are several manuals available, such as Haynes, Clymer, and OEM Manuals from the manufacturer.

        I dislike Haynes and Clymer manuals since they are often incomplete, and I will always prefer the OEM Manufacturer workshop manual. It’s a little more complex, but if you’re serious about maintenance your bike, I highly recommend taking this course.

        These manuals are now available in both hard copy and PDF format. Paper books are my least favorite since they don’t age well, become dirty, and are bad for the environment. They are also more pricey.

        Suzuki Hayabusa Repair Manual PDF

        In my opinion, the finest workshop manual is the OEM Workshop Manual from the manufacturer, which is available in PDF format. Each generation of the Suzuki Hayabusa will have its own model. To minimize any misunderstanding, I’ve included a link to the right handbook for each GSX-R1300R model below.

        Hayabusa First Generation Repair Manual PDF

        Hayabusa Second Generation Repair Manual PDF

        Hayabusa Third Generation Repair Manual PDF

        • Hayabusa Repair Manual PDF for the Suzuki GSX-R 1300 Model 2021 (coming soon)
        • Hayabusa Repair Manual PDF for the Suzuki GSX-R 1300 Model 2022 (coming soon)

        A bit of Eye Candy for the Suzuki Hayabusa GSX-R1300R

        Suzuki GSX1300R Hayabusa (1999-2007)
        Suzuki GSX1300R Hayabusa (2008-2012)
        Suzuki GSX1300R Hayabusa (2013-2015)
        Hayabusa Repair Manual
        Suzuki GSX1300R Hayabusa (2016-2020)
        Suzuki GSX1300R Hayabusa (2021+)

        I hope you found this brief introduction to Hayabusa Repair Manual PDF (and other workshop manuals in general) useful. Please do not hesitate to contact us if you would like to see additional posts in our blog area.

        Be well and ride safe!

        Change oil suzuki Hayabusa

        How to do an Oil Change on your Hayabusa

        Table of Contents

          All motorcycles, including the Suzuki GSXR, require periodic maintenance to function properly and to avoid engine wear at high RPMs.

          Oil changes are one of the most fundamental service routines for a motorcycle, and they are an important maintenance work that you can do fast yourself to ensure that your Suzuki motorbike runs at its peak.

          To learn how to change the oil on a GSXR 1300, follow the step-by-step instructions below and watch the video at the conclusion of the article.

          Tools and Parts Needed – Suzuki GSX-R 1300 Oil Change



          Oil Change on a Suzuki GSXR 1300

          Step 1.

          Warm up the oil by running the engine for a minute or two. It thins it out and makes draining simpler.

          Step 2.

          Remove the oil fill lid to allow the engine to breathe while draining the oil, making it easier to drain the oil.

          Suzuki GSXR-1300 oil change

          Step 3.

          Remove the seven 4mm Allen screws and the bottom bolt holding the right side fairing in place. Then, remove the fairing to have access to the oil filter and drain bolt.

          PRO TIP: Check out the the GSXR 1300R fairing diagram to see where the Allens are located.

          Suzuki Hayabusa oil change
          Change oil suzuki Hayabusa

          Step 4.

          Remove the drain bolt with a 17mm socket and place a drain pan below the engine.

          NOTE: Keep track of the crush washer on the bolt, and replace it if it’s damaged or missing.

          Suzuki GSXR 1300 oil drain

          Step 5.

          After the oil has completed draining, replace the drain bolt and its crush washer, and twist the drain bolt to 16.5 foot-pounds.

          Step 6.

          Use a 65mm oil filter wrench to remove the oil filter, which is located on the front of the engine, behind the exhaust.

          Suzuki motorcycle oil change service

          Step 7.

          To prepare the new oil filter for installation, rub a little oil over the gasket at the top of the filter with your finger. This makes removal easier the following time.

          Suzuki GSXR-1300 oil filter change

          Step 8.

          Replace the oil filter and torque it to 14.5 foot-pounds.

          Suzuki GSXR motorcycle oil filter installation

          Step 9.

          Spray a little amount of contact cleaner on the exhaust to remove any extra oil that has been spilt on it.

          NOTE: If oil has leaked, do not miss this step since any excess oil on the exhaust will cause smoke.

          Step 10.

          Replace the fairing in the same manner that you removed it.

          Step 11.

          Fill the unit with motorcycle engine oil

          NOTE: 3.3 quarts of 10W40 motorcycle oil is recommended by Suzuki. Because automobile oil will cause your wet clutch system to slide, only use motorcycle oil.

          Suzuki GSXR-1300 oil change

          Step 12.

          Replace the fill cap, then restart the engine for a few minutes to circulate the oil. Next, turn off the engine and inspect the sight glass. finish the

          NOTE: Replace the fill cap, then restart the engine for a few minutes to circulate the oil. Next, turn off the engine and inspect the sight glass. finish the

          The steps for changing the oil on a Suzuki motorbike are the same or very similar.

          Source: Partzilla

          Be well and ride safe!

          motorbike repair manuals

          Getting your own service manual to repair your ride can save you $$$

          Repairs and maintenance for your motorcycle are the most expensive part of owning a motorcycle. It is more expensive than insurance or petrol.

          Any mechanical device needs to be properly maintained to run smoothly and over a long period of time. Any mechanical equipment must be properly maintained in order to work smoothly and for an extended length of time. Motorcycles are no different. While components might be expensive, with a little investigation, you can obtain inexpensive original parts. On that note, I urge that you look at

          However, if you examine the workshop invoices, you will see that, on average, half of the cost is labor.

          It is true that hardly everyone can become a mechanic overnight. Nevertheless, there are easy maintenance procedures you can perform on your bike that will save you hundreds of dollars if you invest a little time and effort and have the correct service handbook for your ride.

          It will also provide you with the fundamental knowledge and references you need to ask smart questions of your mechanics, as well as assist you recognize unscrupulous workshops that sadly exist in the area and charge for things you don’t need.

          Be well and ride safe!

          motorcycle in the desert

          Time to get intimate with your motorbike

          Whether you ride a cruiser, a sports bike, or a dirt bike, one thing is certain: you must maintain it on a regular basis in order to keep it safe and function well.

          So some of you will find it more convenient to bring the bike to the workshop (or have them pick it up) and have a perfectly working bike appear out of nowhere. There will be no headaches, no soiled hands, and no time spent.

          Sounds ideal?


          It might be frightening at first to open and adjust anything on a machine capable of reaching speeds of over 100mph on those wonderful curving roads. However, knowing how your bike works and what you need to do to keep it in good condition is essential for all riders. And it will also help you ride better.

          The last thing you want is to get your bike back from a sloppy technician who forgot to tighten that one screw or used the wrong oil. Knowing the fundamentals will undoubtedly assist you in maintaining the greatest levels of safety.

          There are several motorcycle repair costs associated with owning a motorcycle. However, doing regular maintenance at the intervals specified in your service manual will greatly reduce total repair expenses for your bike and enhance your riding experience.

          When you first start riding, you may not know how much care your motorbike need. You may save money on motorbike repairs if you learn how to properly care for the parts.

          Parts might be pricey, but here’s a hint if you own a Japanese brand. We normally get our components from Partzilla, which has shown to be the greatest site for ordering parts at the most affordable costs. They do sell original and OEM components. I would always recommend ordering basic maintenance components in advance (brake pads, oil filter, etc.) so you don’t have to wait for them to be sent when you need them. Because all part numbers are given in your repair manual, you can’t go wrong.

          If you go through the hassle of servicing your motorcycle yourself, you may use the money you save towards more vital repairs.

          Be well and ride safe!

          repair your motorbike yourself

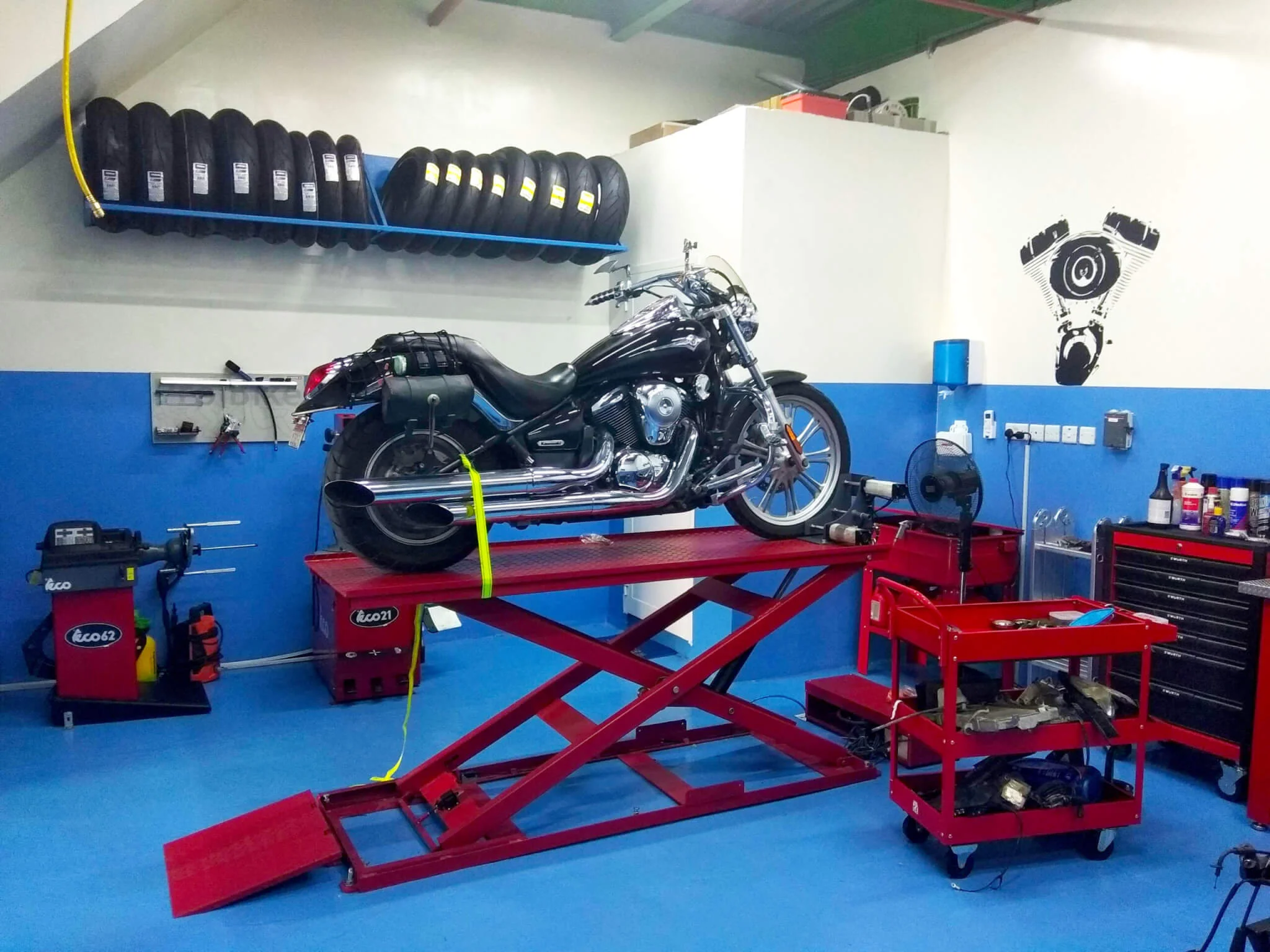

          Organize your motorbike repairs

          motorbike repairs

          Making the decision to fix your bike yourself will necessitate a one-time expenditure that will show to be quite advantageous over time.

          Aside from the most important repair manual, which you can purchase here at the greatest price, you’ll need a set of tools (which are normally indicated in the service manual) and a space to work on the repairs.

          Don’t attempt to cut corners on the tools. It is worthwhile to spend a little extra money on excellent brands that you will keep for the rest of your life. Cheap tools are not only a lousy long-term investment, but they may also be hazardous.

          A maintenance table in your workshop manual will detail everything you need to check/replace on your bike and when. I printed and laminated the tables so that I could use them again and again while effortlessly wiping away the oil. It’s a good idea to schedule the major repair once the riding season is ended.

          When it comes to the site where you will execute your repairs, whether it is your garage or somewhere else, make sure it is properly ventilated, has an average temperature, and is dust-free. I prefer to check my service manuals on an old tablet (I have fixed it on a small stand with wheels that I can move around and protected it with a rugged cover).

          I order the particular components I need and print the necessary sections of the repair manual whenever I want to work on my bike. When at all feasible, I try to have everything ready and arranged before beginning to remove any screws.

          Ride safe!

          Ahmed T

          Ahmed T. – Kawasaki ZX14 Rider

          I used to always give my bike to service until one day the mechanic put the wrong oil by accident. Since then I very much prefer to service my bike myself, so I started looking for a repair manual. I wasn’t convinced about a PDF version at first, but given it was significantly cheaper than a printed version, I gave it a go. Best decision in my life! I just print the pages I need when I service my bike, without worrying about getting them greasy. I would definitely recommend it.
